Memory Seat Module, Seat Recline Position Sensor and Motor

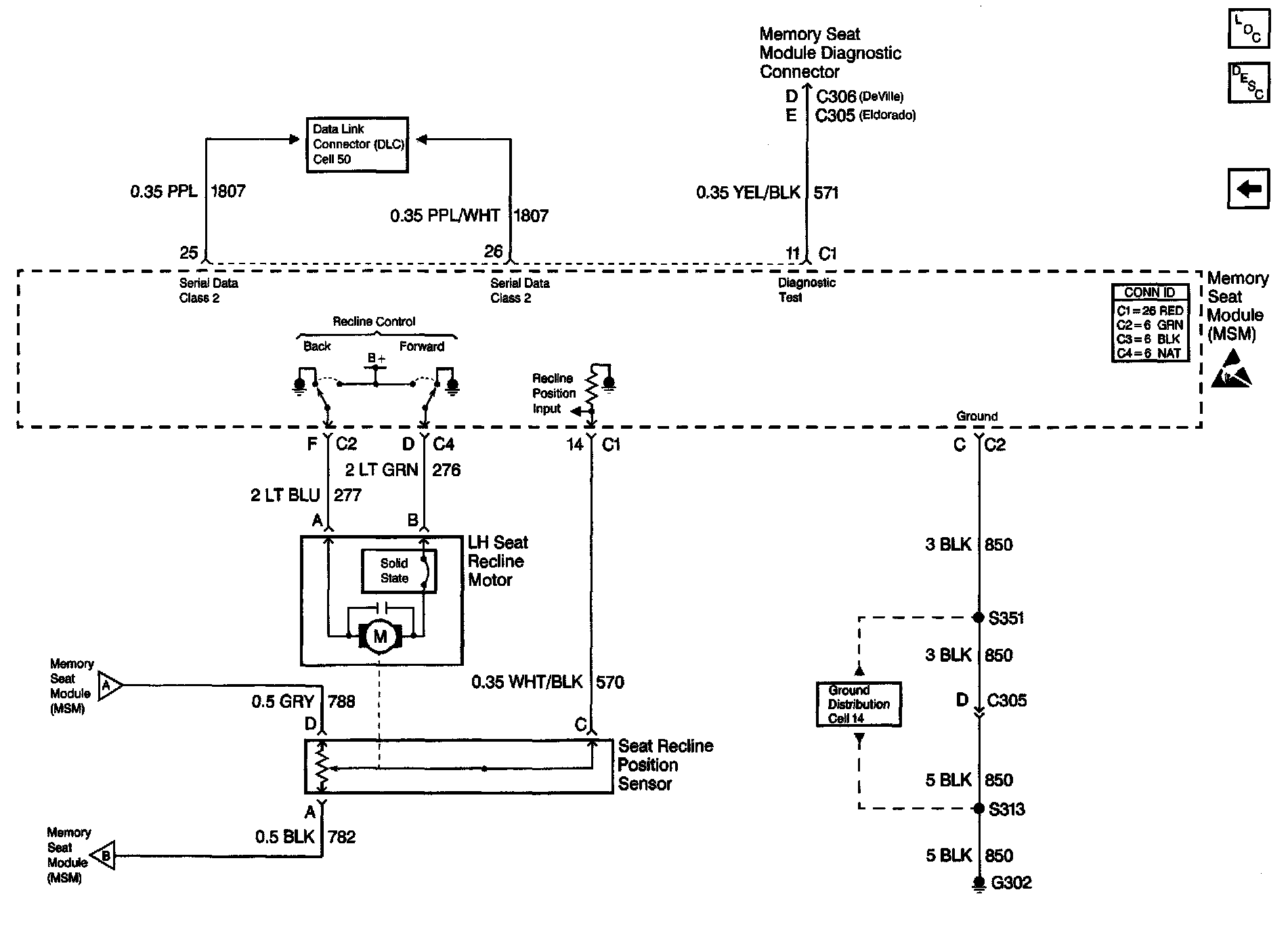

Memory Seat Schematics: Memory Seat Module, Seat Recline Position Sensor And Motor:
