Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body and Frame >> Seats >> Memory Seats >> LH Seat Switch (Deville)

LH Seat Switch (Deville)

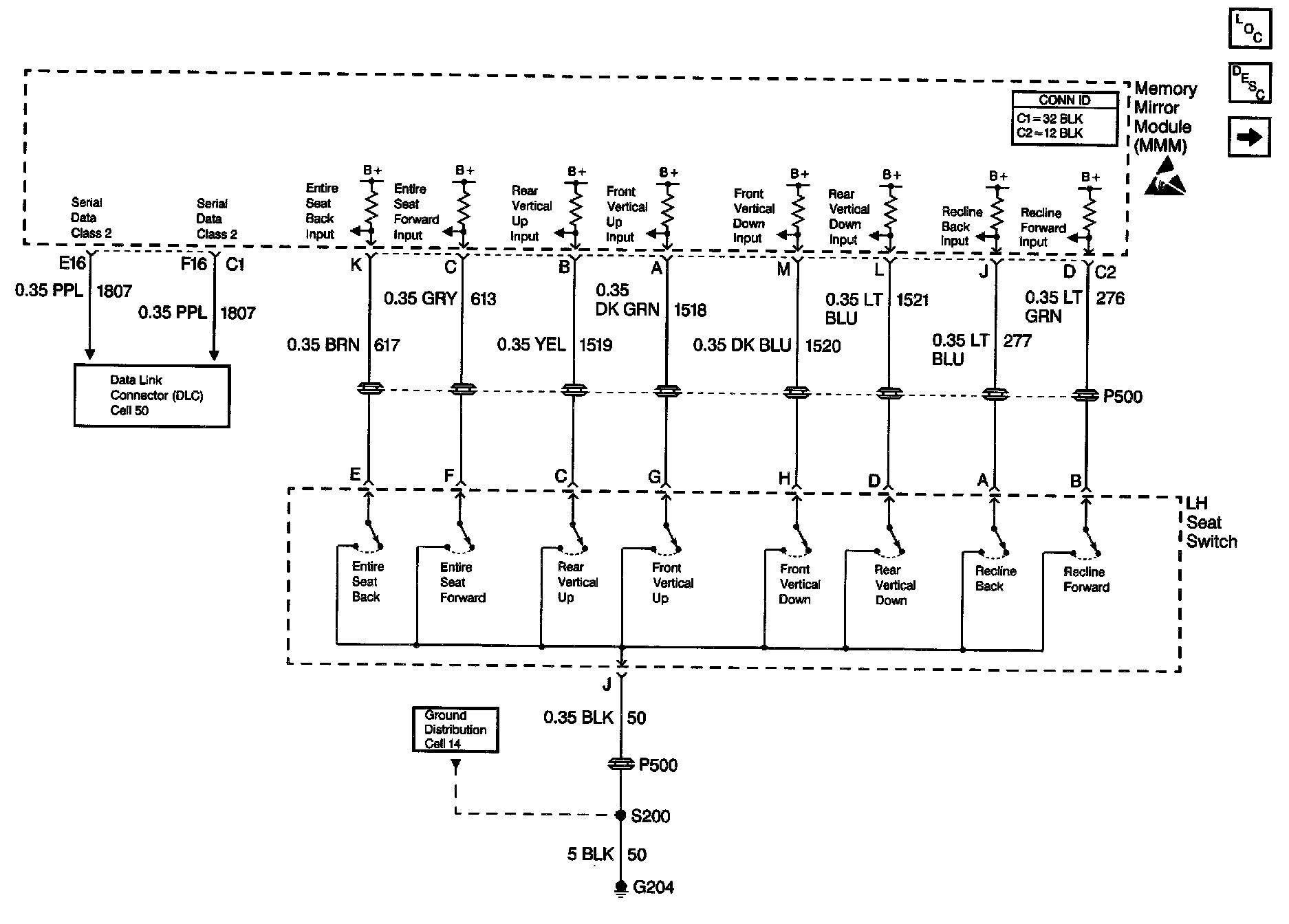

Memory Seats Schematics: LH Seat Switch (DeVille):
