Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body and Frame >> Seats >> Lumbar Support >> Lumbar Support Schematics (AM3) >> RH Lumbar Switch and Lumbar Message Module

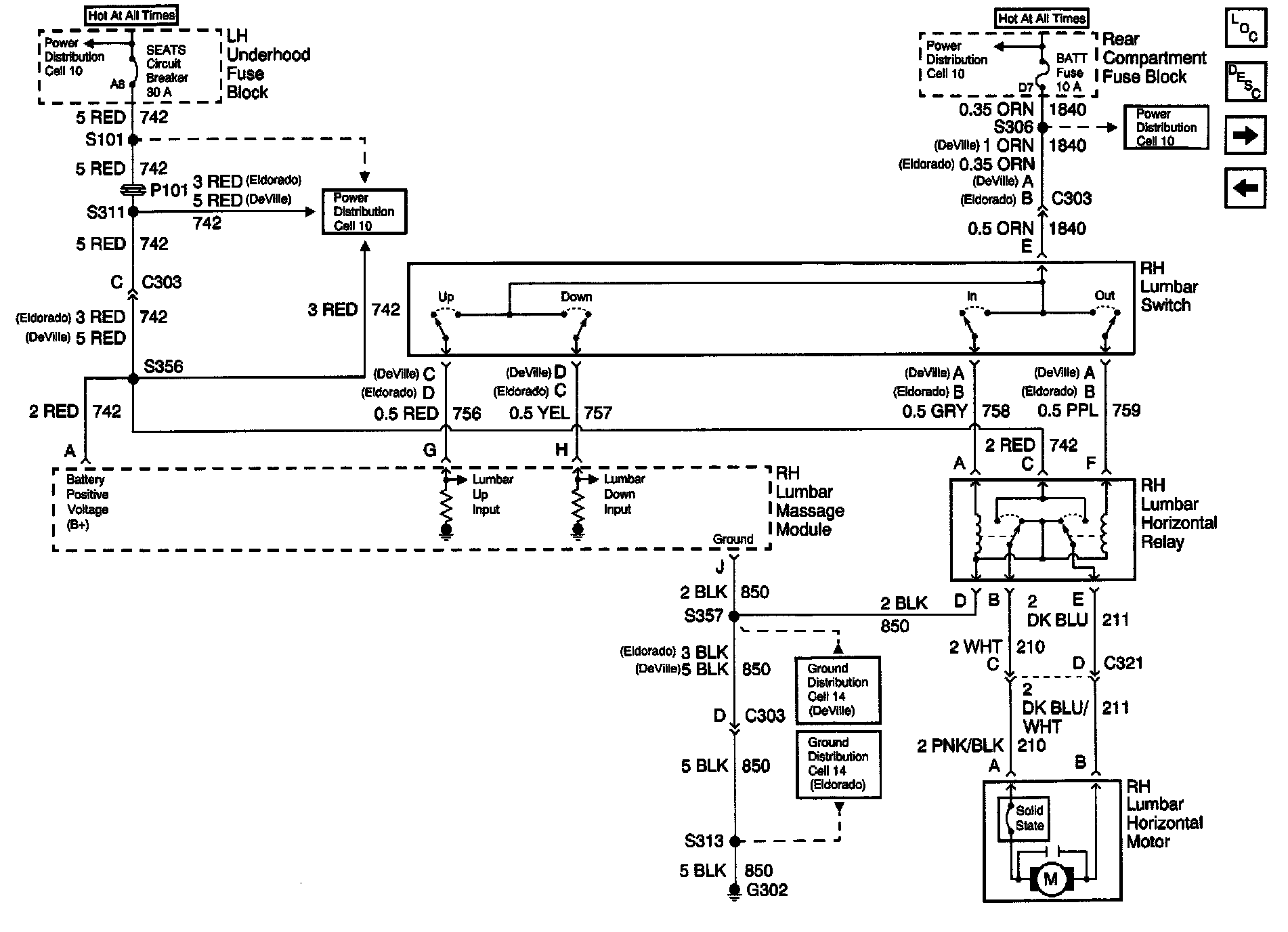

RH Lumbar Switch and Lumbar Message Module

Lumbar Support Schematics (AM3): RH Lumbar Switch And Lumbar Message Module:
