Lock Release Relays (Deville With V4U)

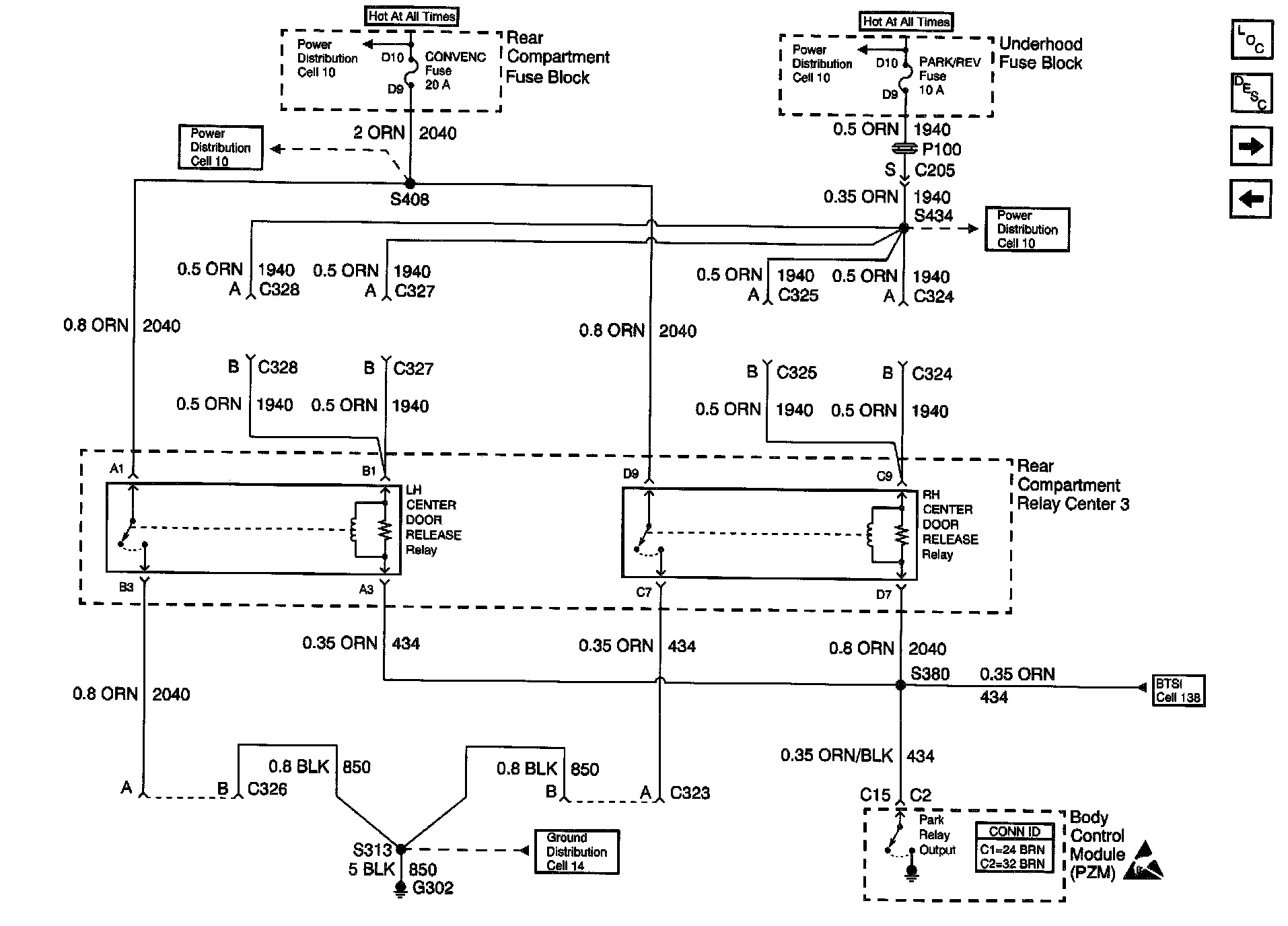

Door Lock Schematics: Lock Release Relays (DeVille With V4U):
