Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Left Power Door Lock Switches

Left Power Door Lock Switches

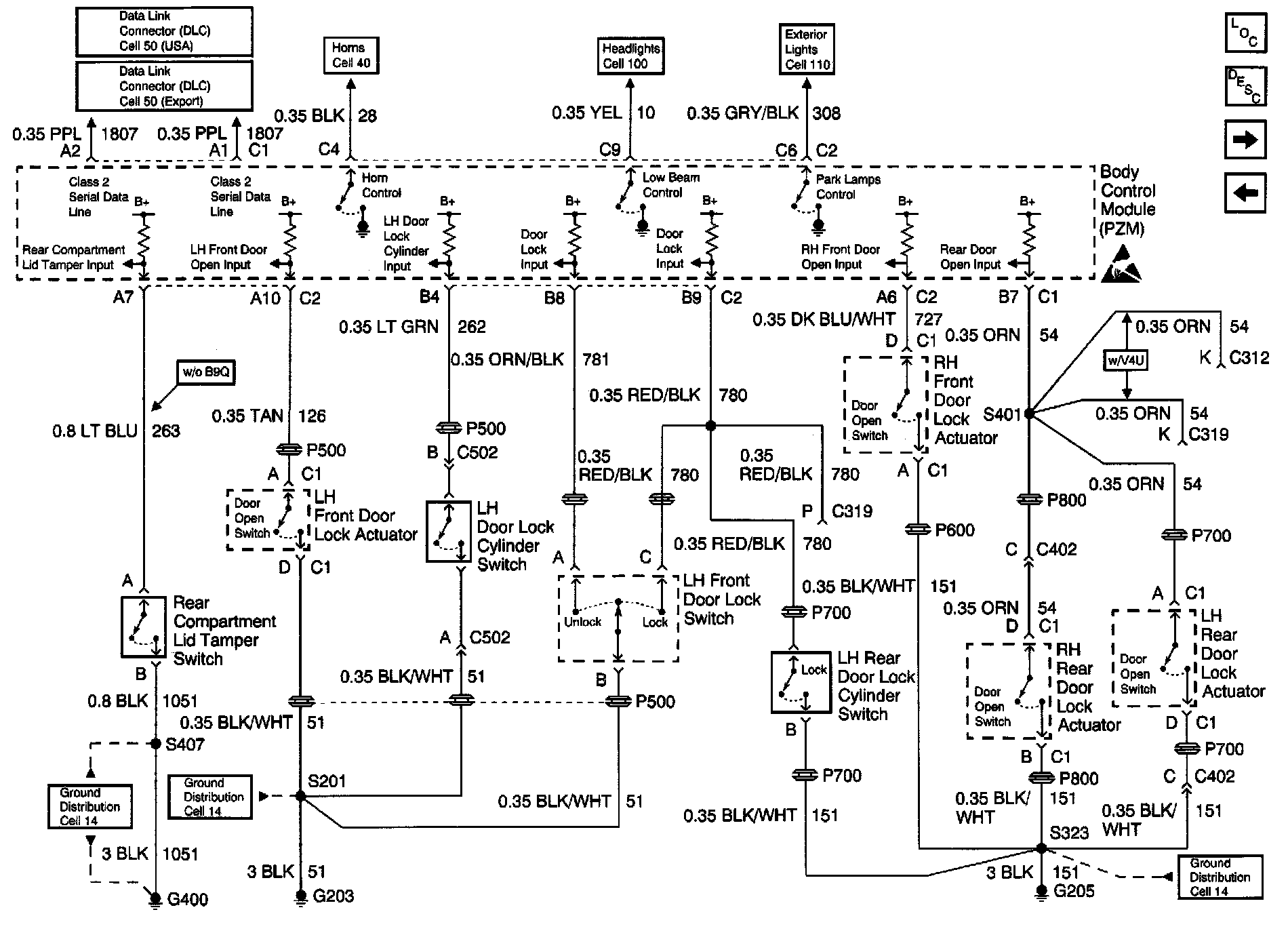

Theft Deterrent System Schematics: Left Power Door Lock Switches:
