Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C300 - C399 >> C306 (Left), C304 (Right)

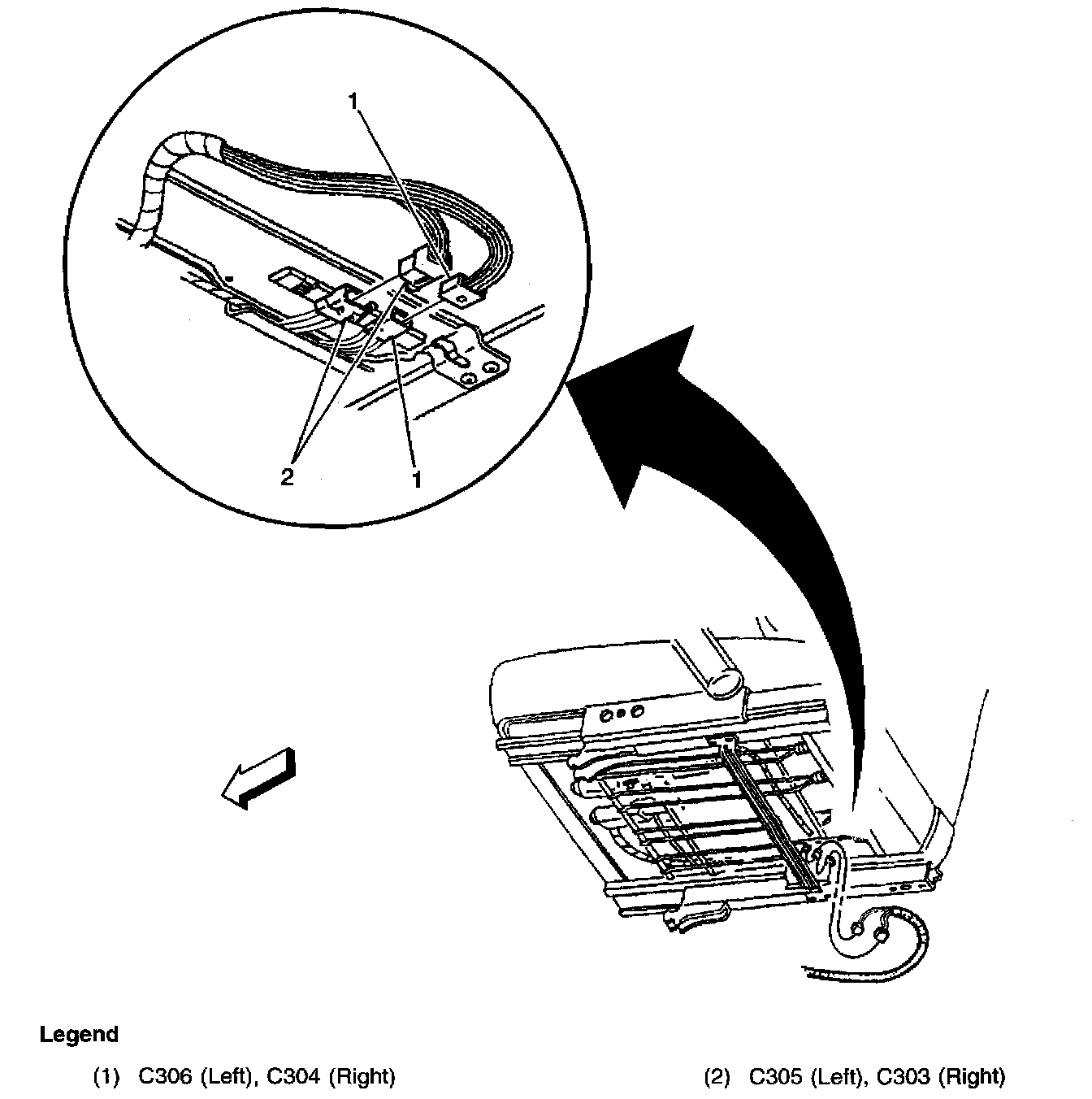

C306 (Left), C304 (Right)

Passenger Compartment, Under the Front Seat:
