Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Relay >> Seat Relay Module >> Seat Relay Module, RH - C1

Seat Relay Module, RH - C1

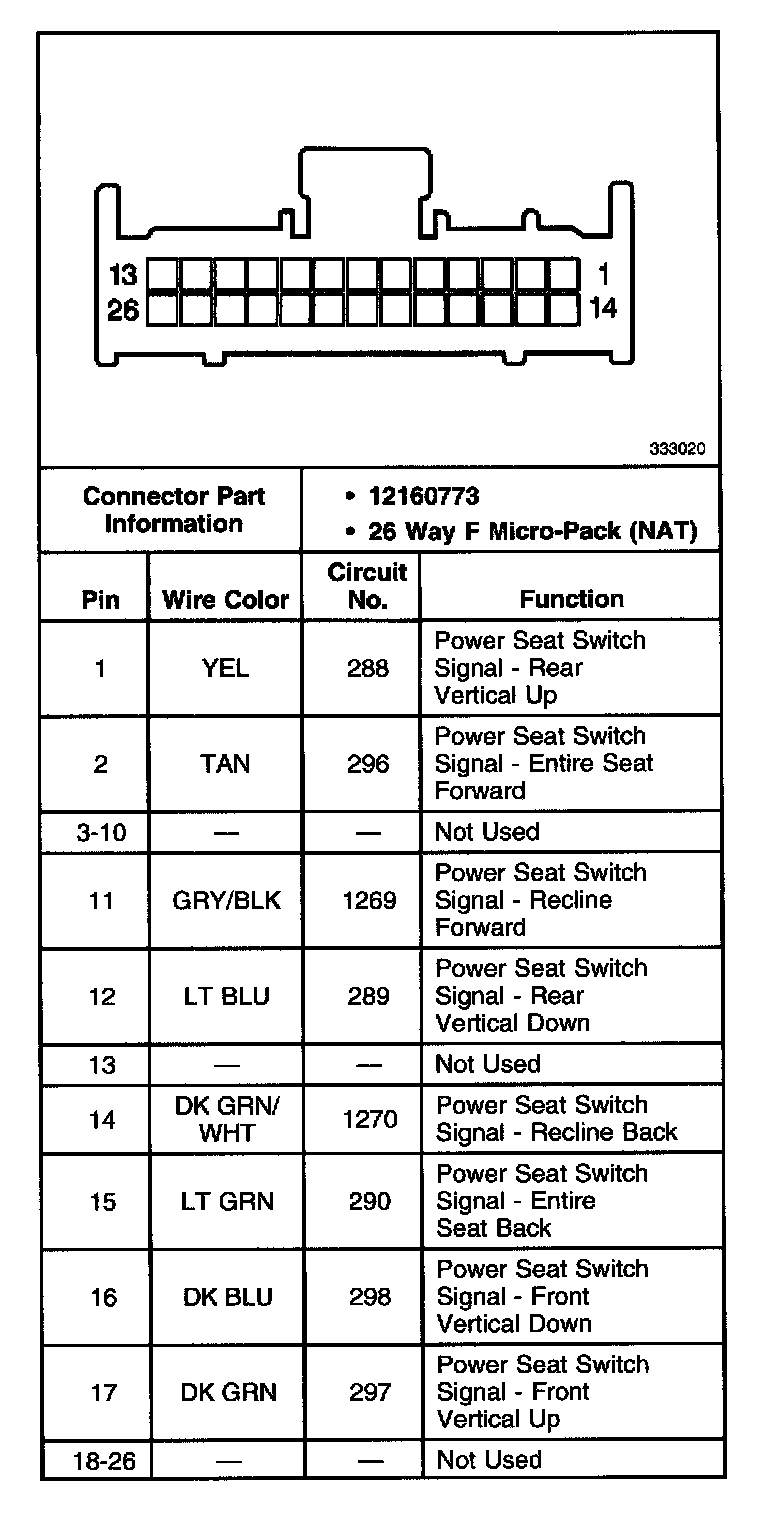

RH Seat Relay Module, C1:
