Memory Seat Module (MSM), C4

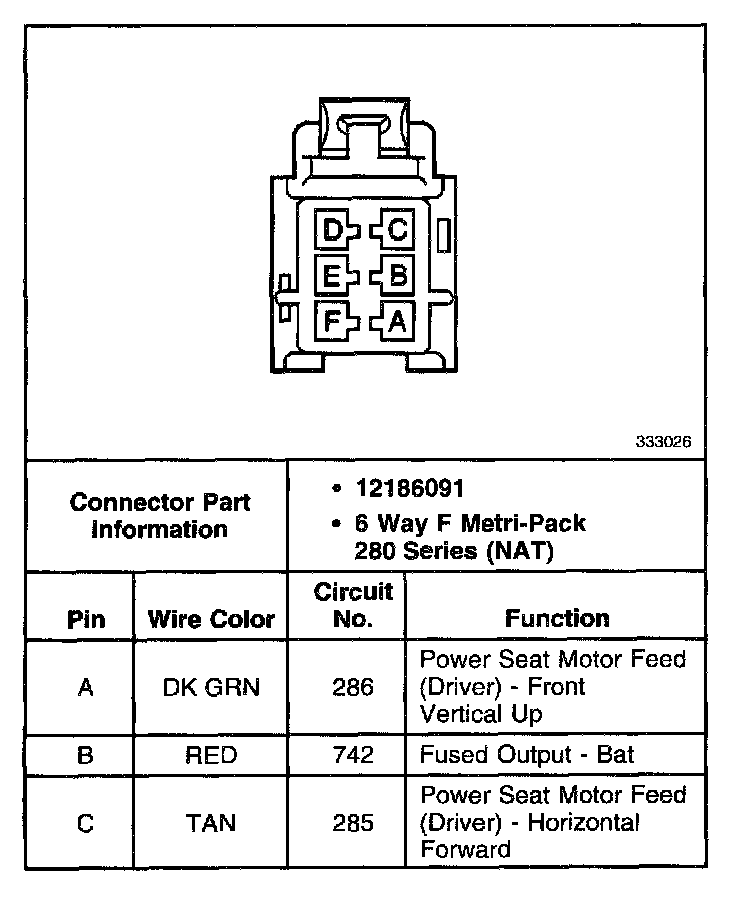

Memory Seat Module (MSM), C4 (Part 1 Of 2):

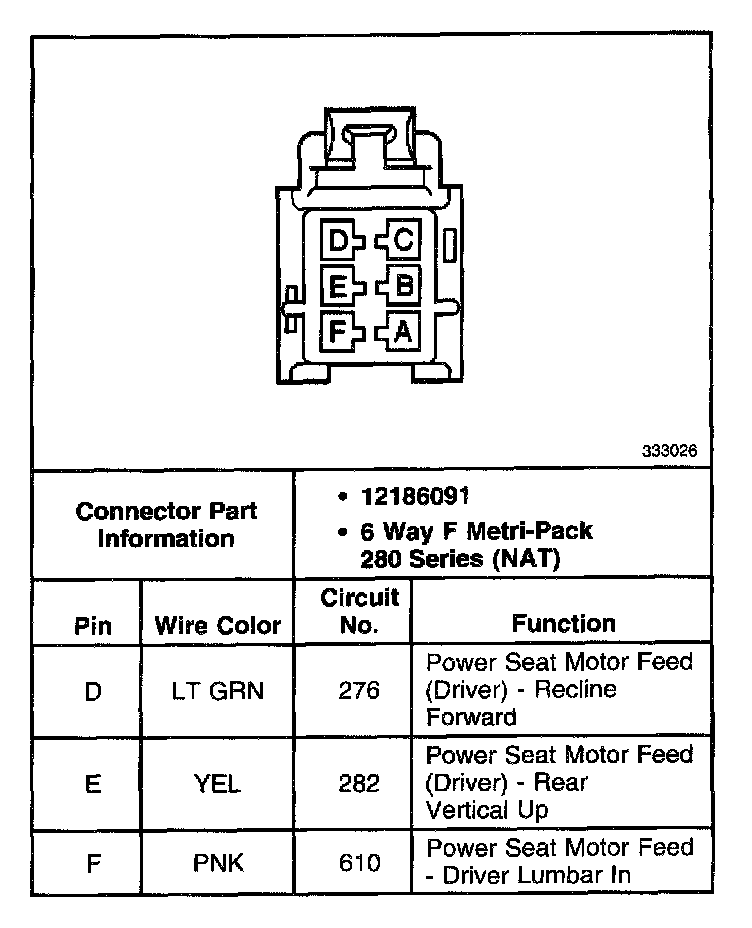

Memory Seat Module (MSM), C4 (Part 2 Of 2):
