Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio (IRC) >> (w/UW6)

(w/UW6)

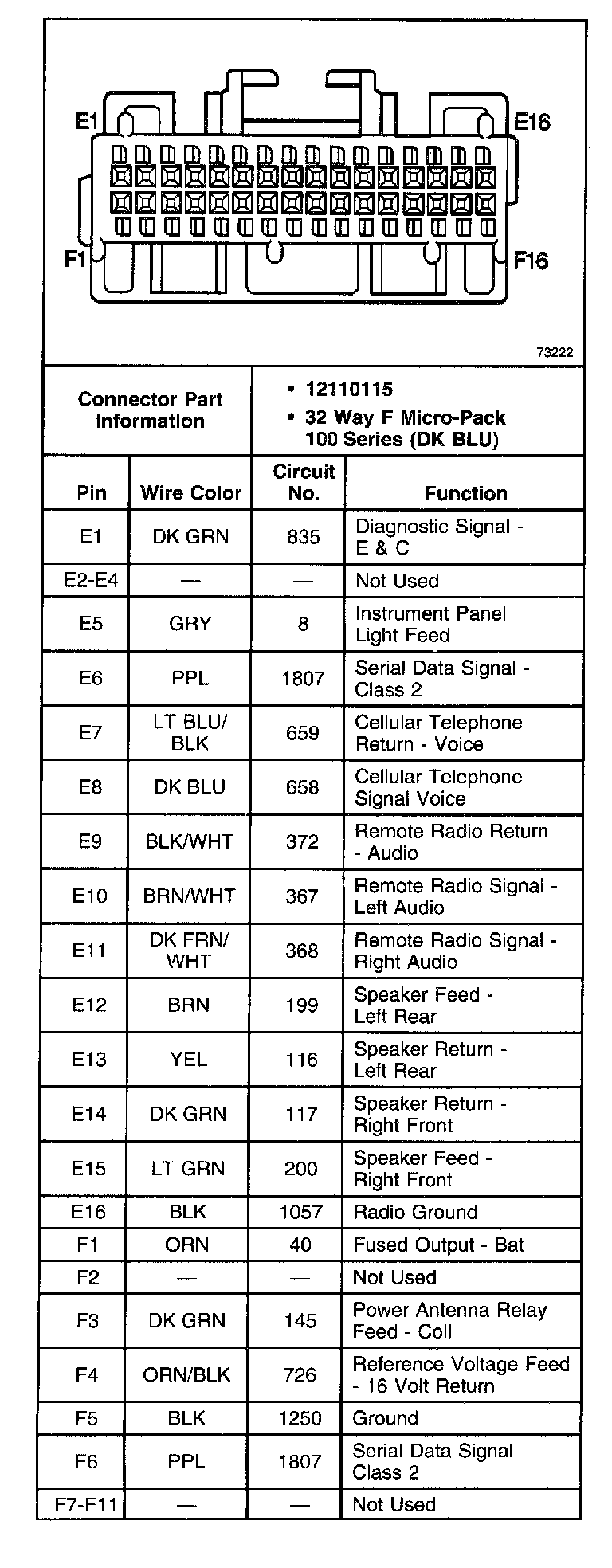

Radio (IRC) (w/UW6) (Part 1 Of 2):

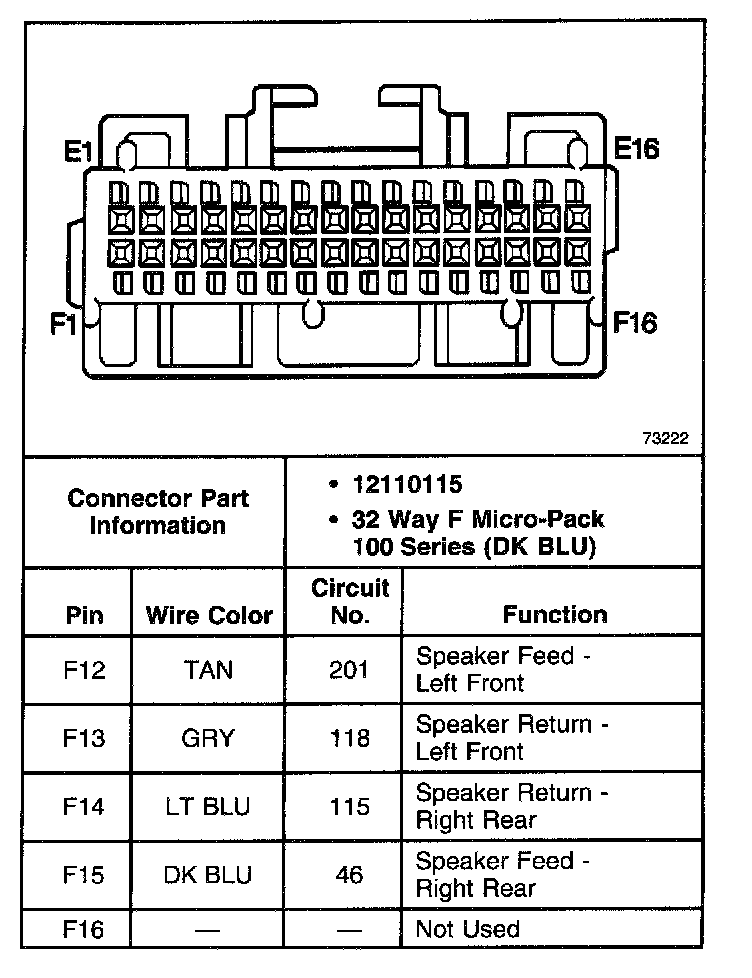

Radio (IRC) (w/UW6) (Part 2 Of 2):
