Cadillac
>>
1999
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Rear
>>
Speaker (W/UW6), RH Rear
Speaker (W/UW6), RH Rear

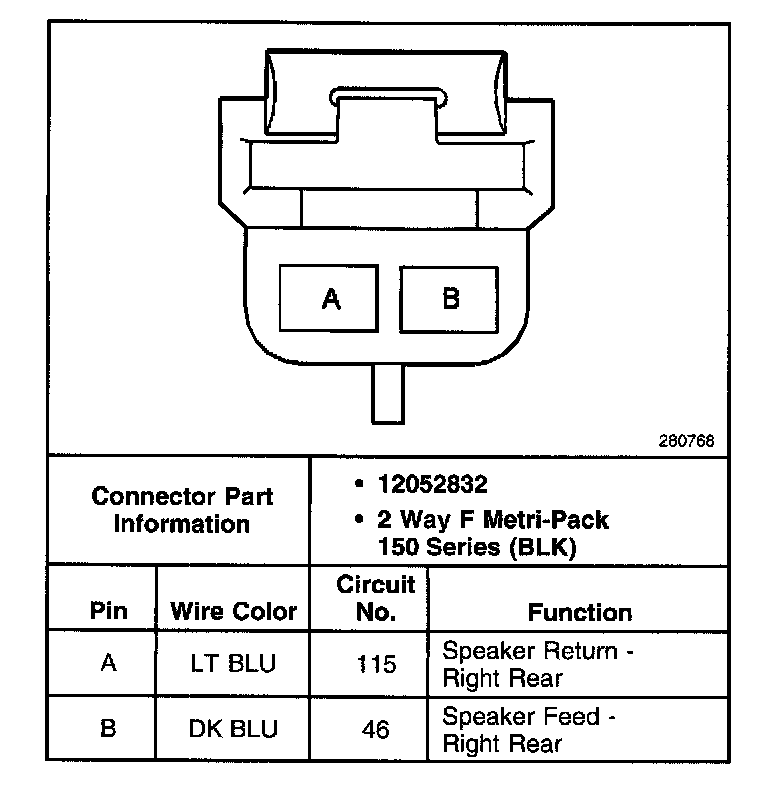

RH Rear Speaker (w/UW6):
