Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Speaker >> Rear >> Speaker (W/UQ6), Left Rear

Speaker (W/UQ6), Left Rear

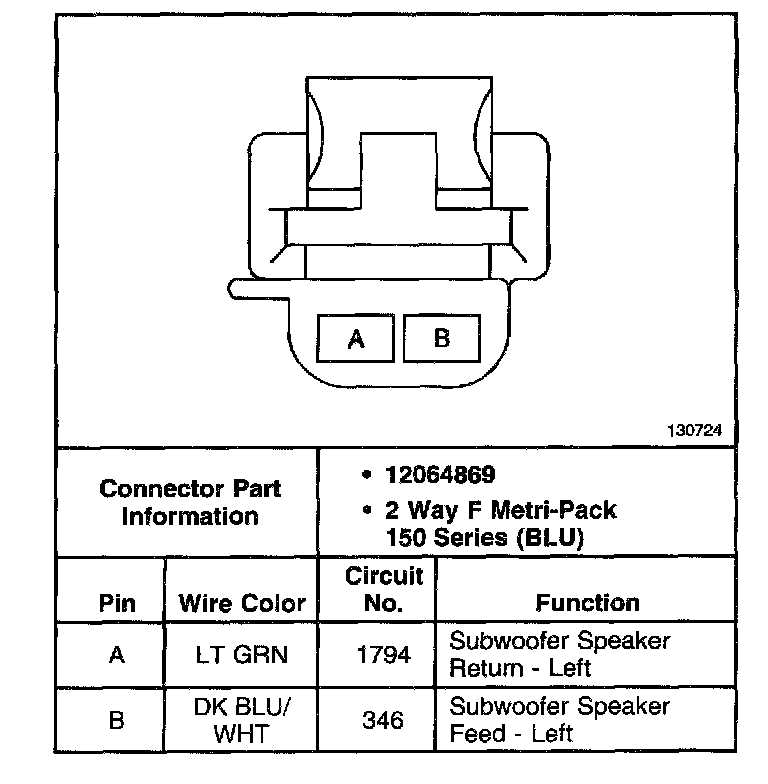

Left Rear Speaker (DeVille W/UQ6):
