Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Speaker >> Rear >> Door Speaker (Midrange), LH Rear

Door Speaker (Midrange), LH Rear

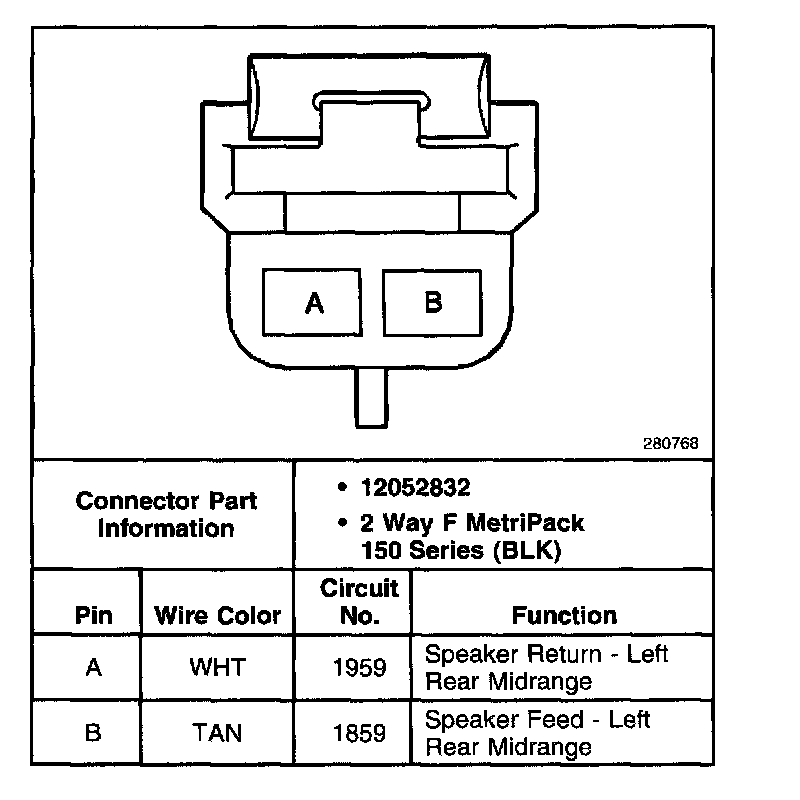

LH Rear Door Speaker (Midrange):
