Cadillac
>>
1999
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Door Speaker (Tweeter)
Door Speaker (Tweeter)

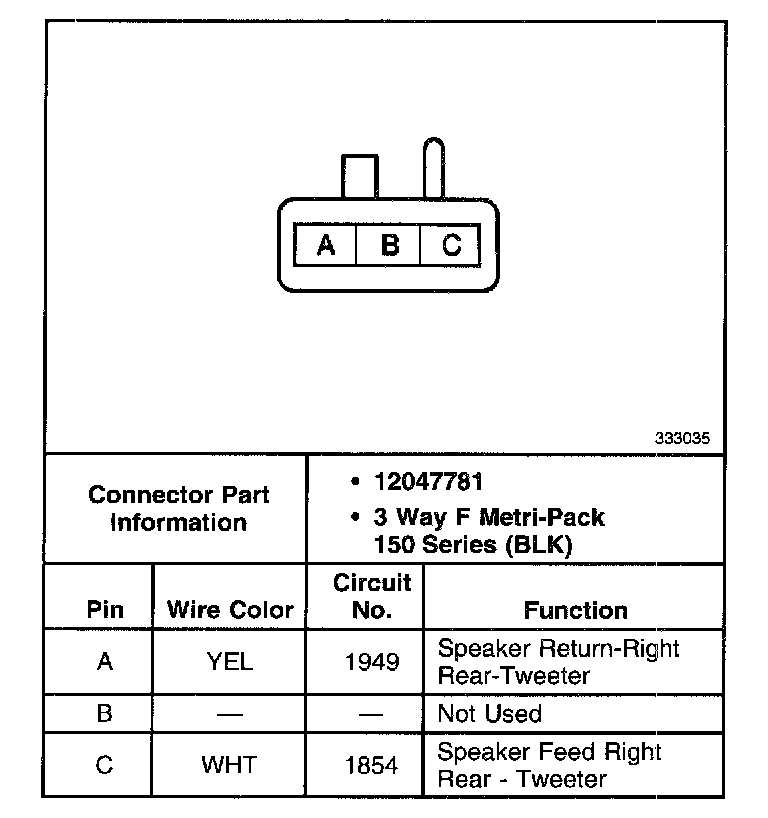

RH Rear Door Speaker (Tweeter):
