Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Outside >> Outside Mirror, RH - C2

Outside Mirror, RH - C2

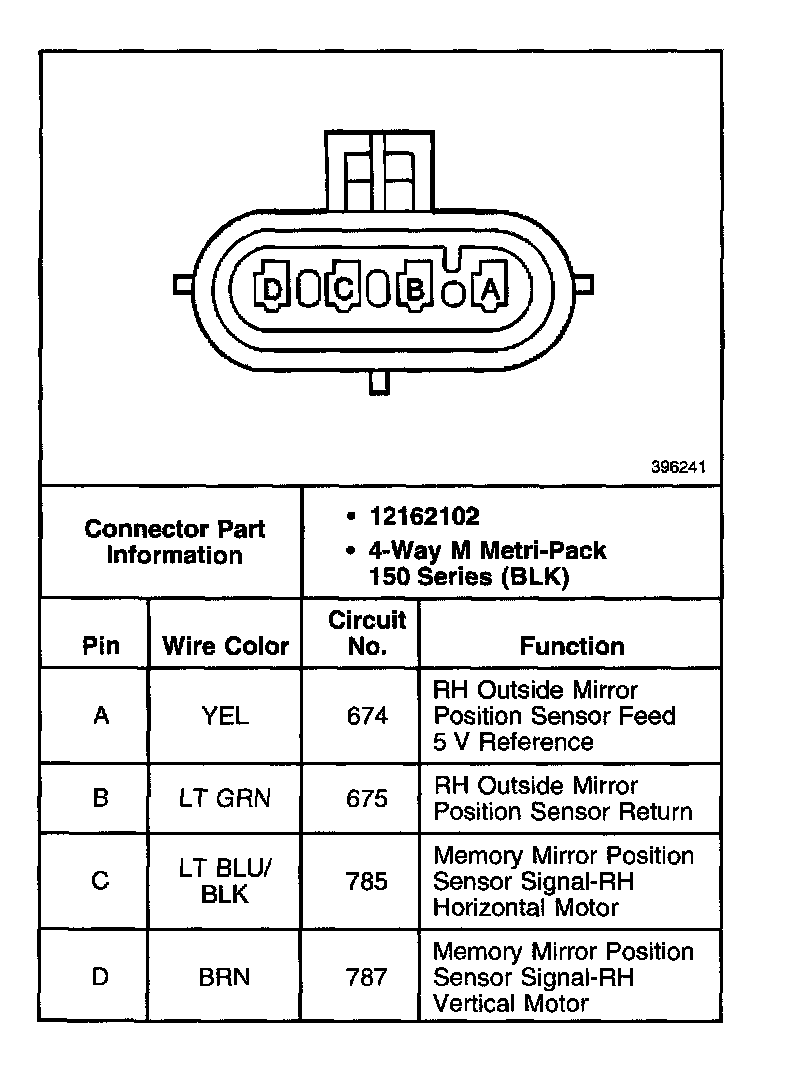

RH Outside Mirror, C2:
