Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Outside >> Outside Mirror - C1, LH

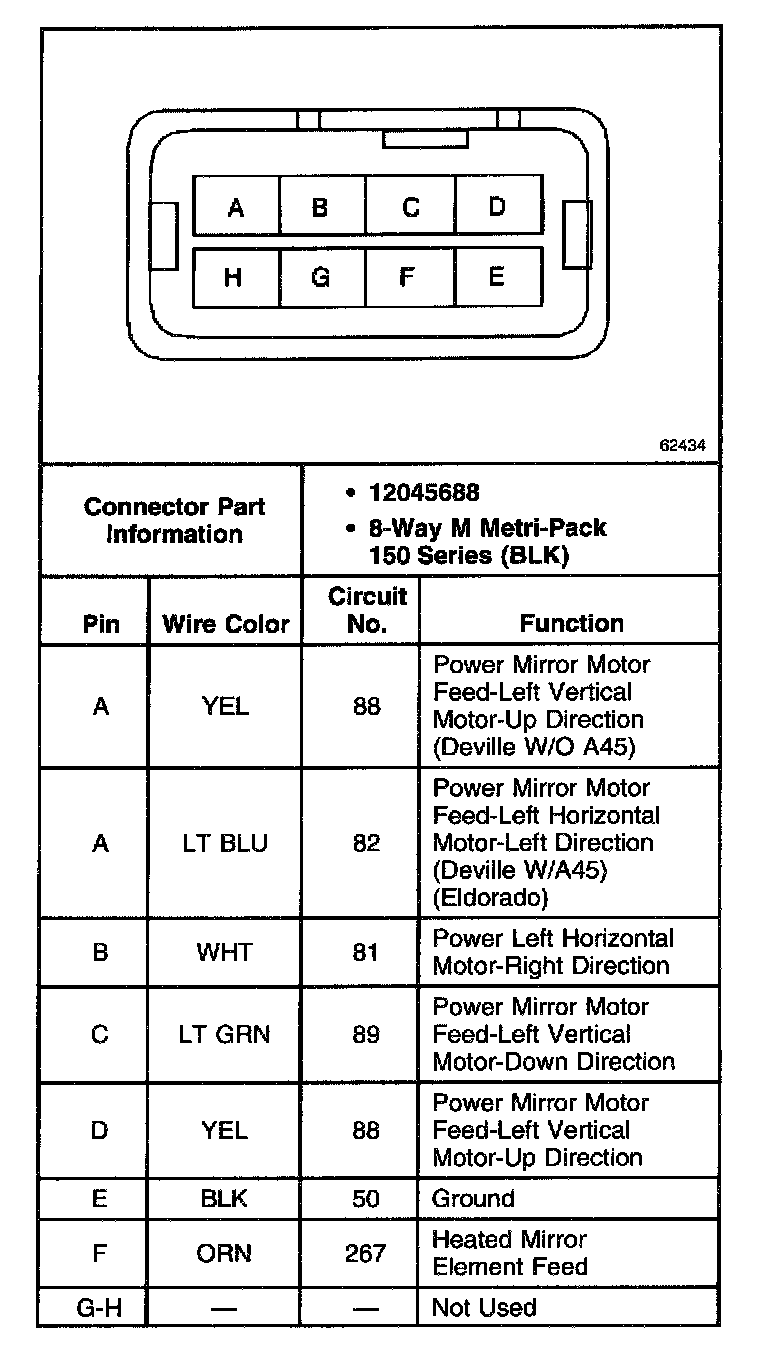

Outside Mirror - C1, LH

LH Outside Mirror, C1:
