Home
>>
Cadillac
>>
1999
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
>>
Memory Mirror Module (MMM), C1
Memory Mirror Module (MMM), C1

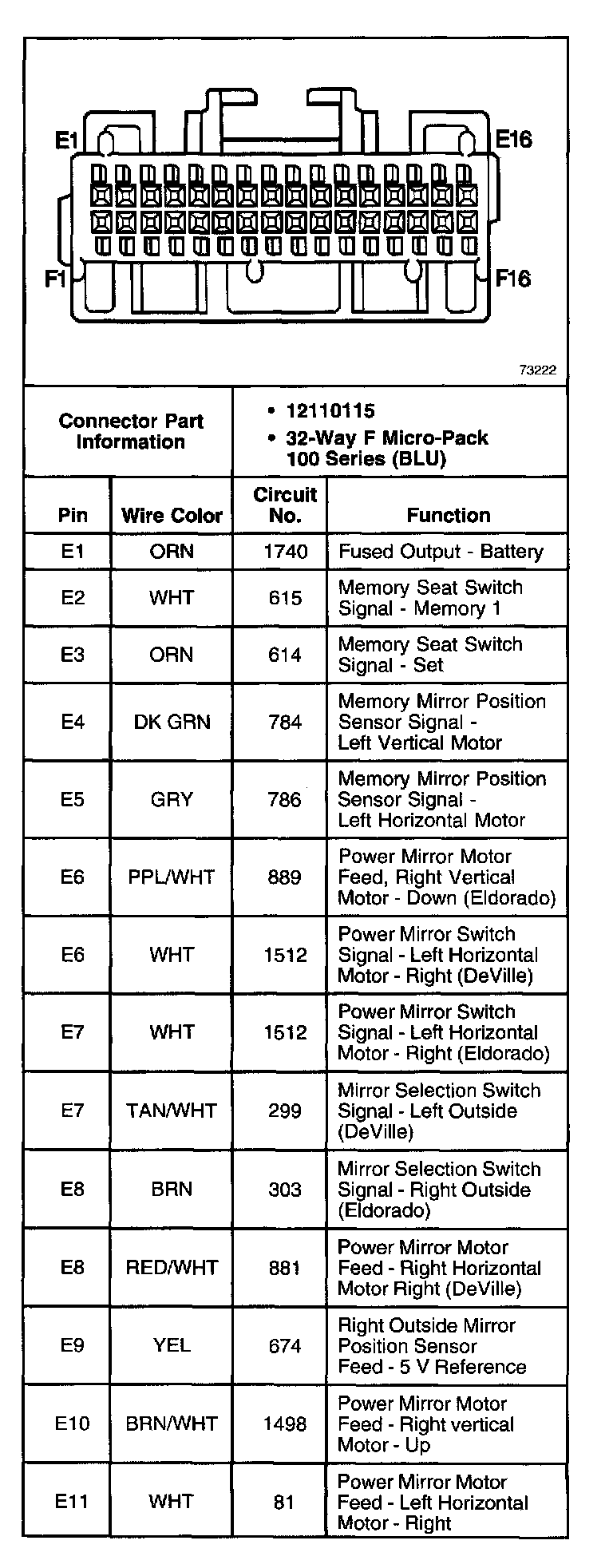

Memory Mirror Module (MMM), C1 (Part 1 Of 2):

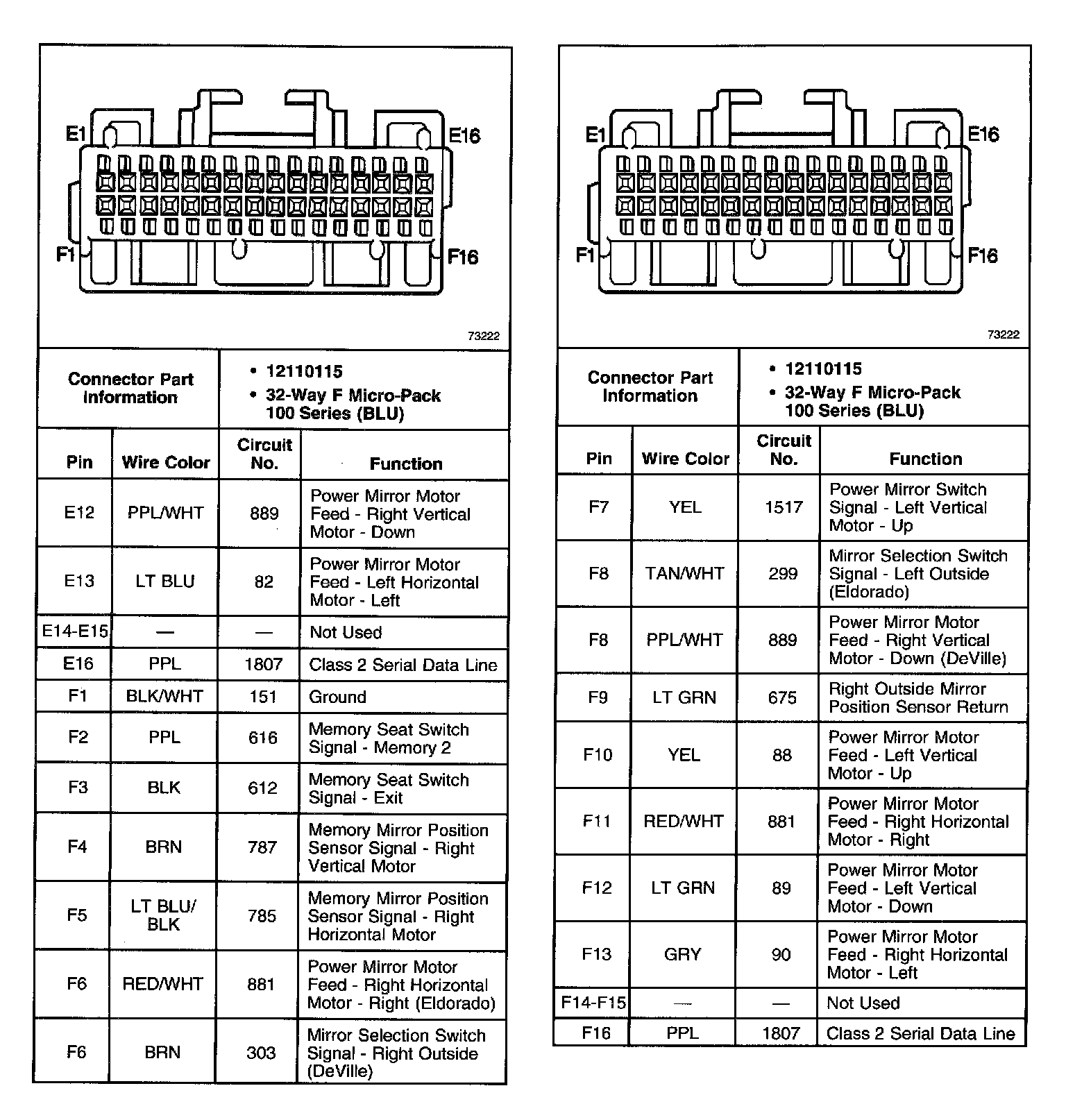

Memory Mirror Module (MMM), C1 (Part 2 Of 2):
