Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Courtesy /Reading Lamp, Left/Right Front

Courtesy /Reading Lamp, Left/Right Front

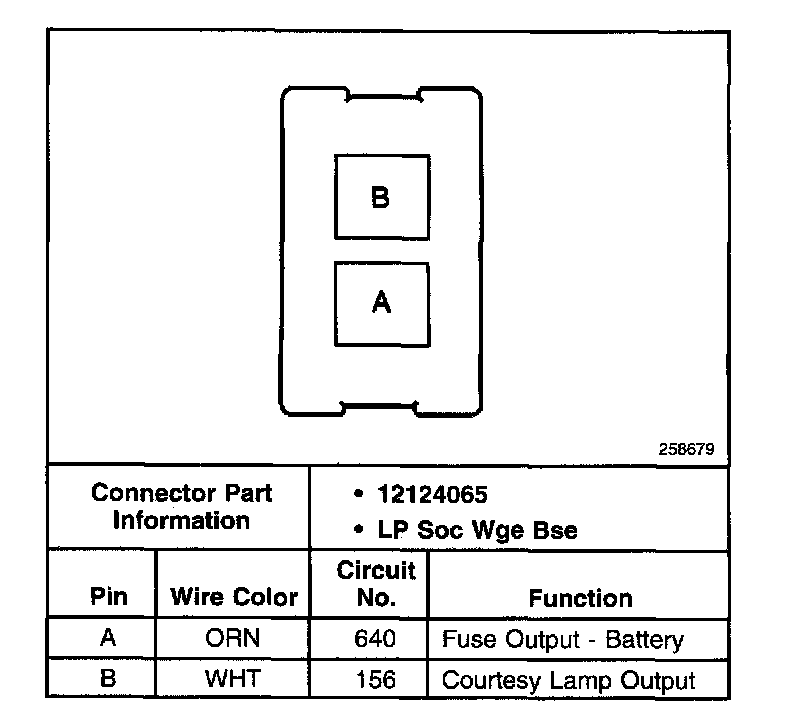

Left And Right Front Courtesy /Reading Lamp:
