Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C316 (Deville)

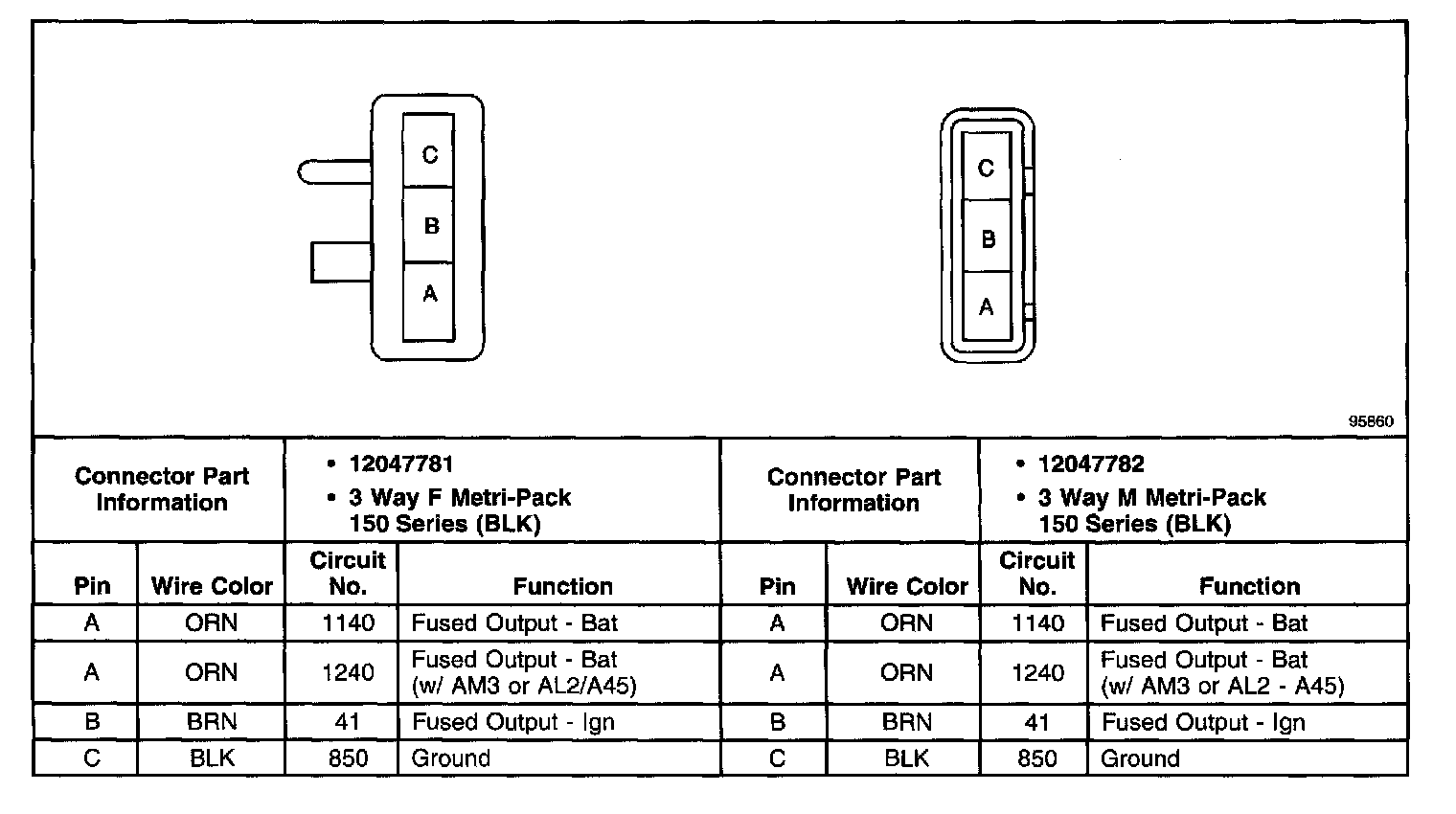

C316 (Deville)

C316 (DeVille):
