Home
>>
Cadillac
>>
1999
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C314 (W/B9Q or 4VU)
C314 (W/B9Q or 4VU)

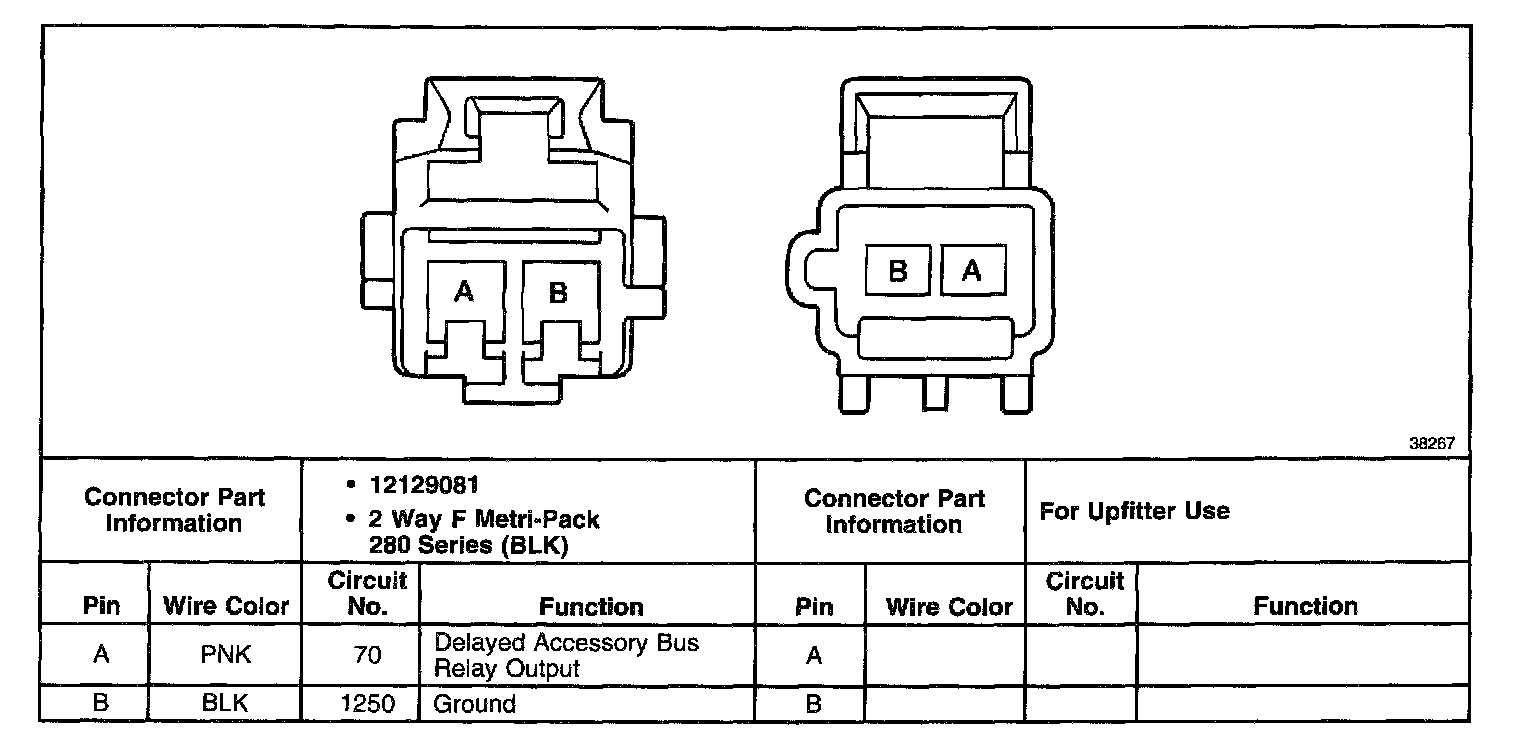

C314 (w/B9Q Or 4VU):
