Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C306 (Deville W/O A45)

C306 (Deville W/O A45)

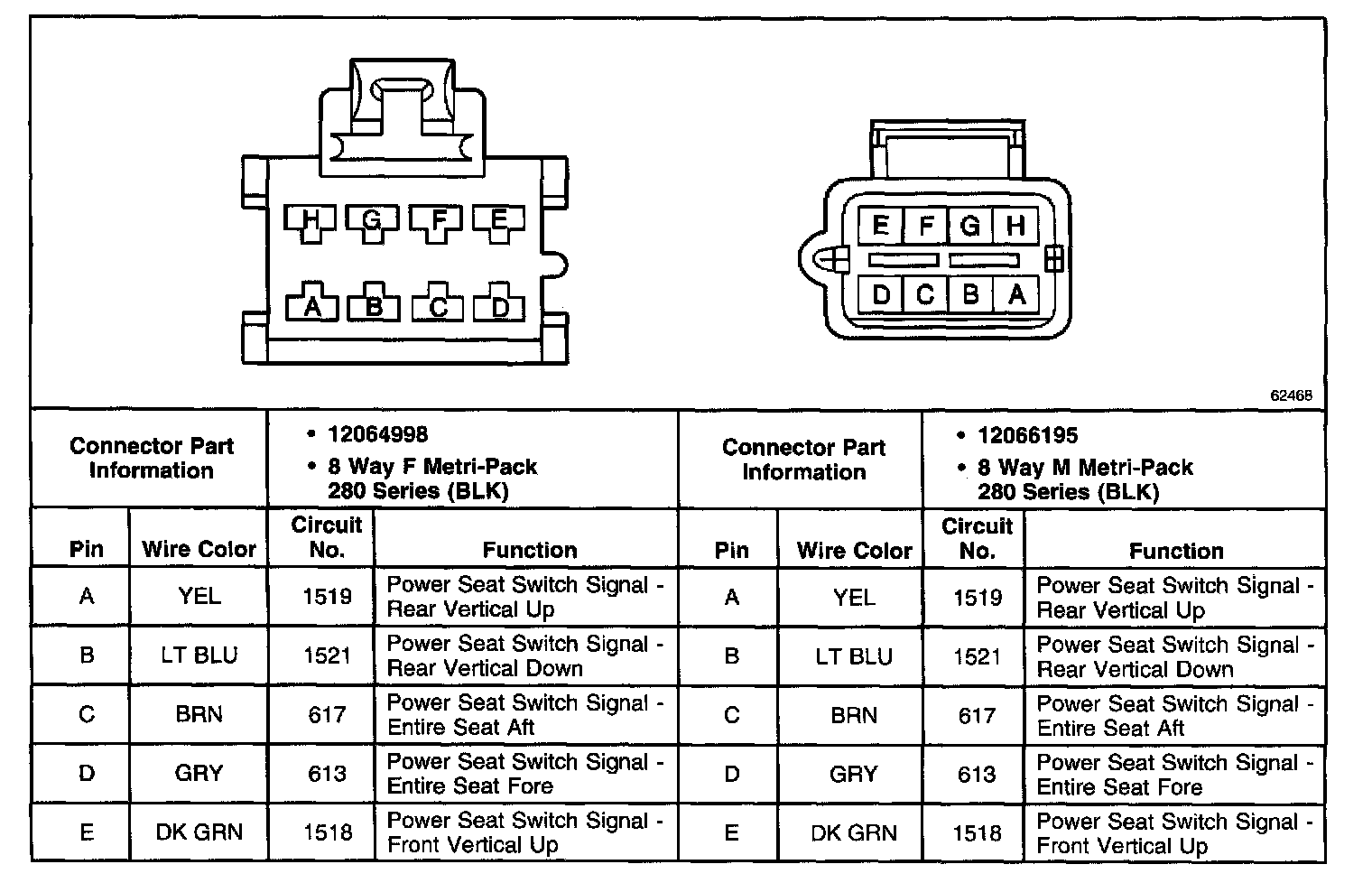

C306 (DeVille W/O A45):



C306 (DeVille W/O A45) (Part 2 Of 2):
