Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Cellular Telephone Module (Deville)

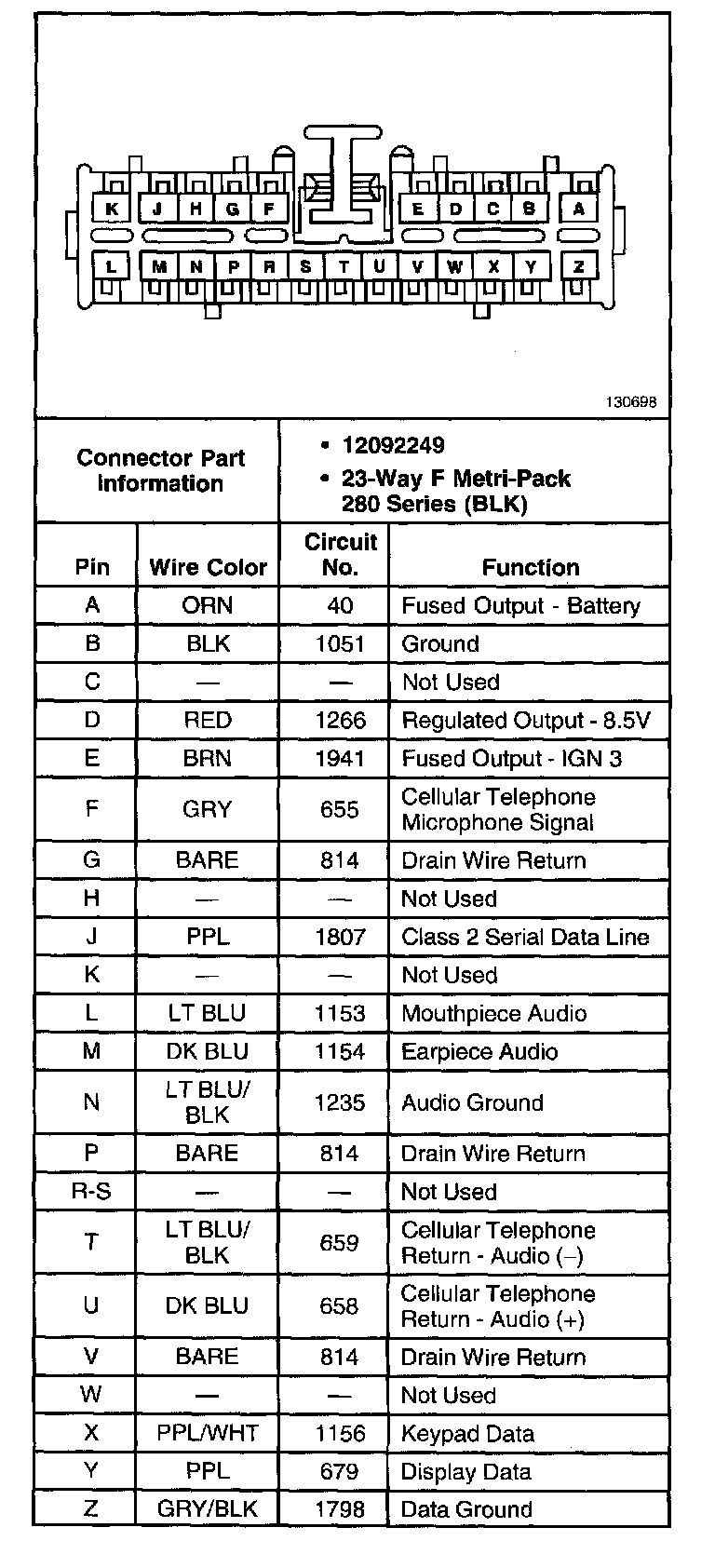

Cellular Telephone Module (Deville)

Cellular Telephone Module (DeVille):
