Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Seat Harness

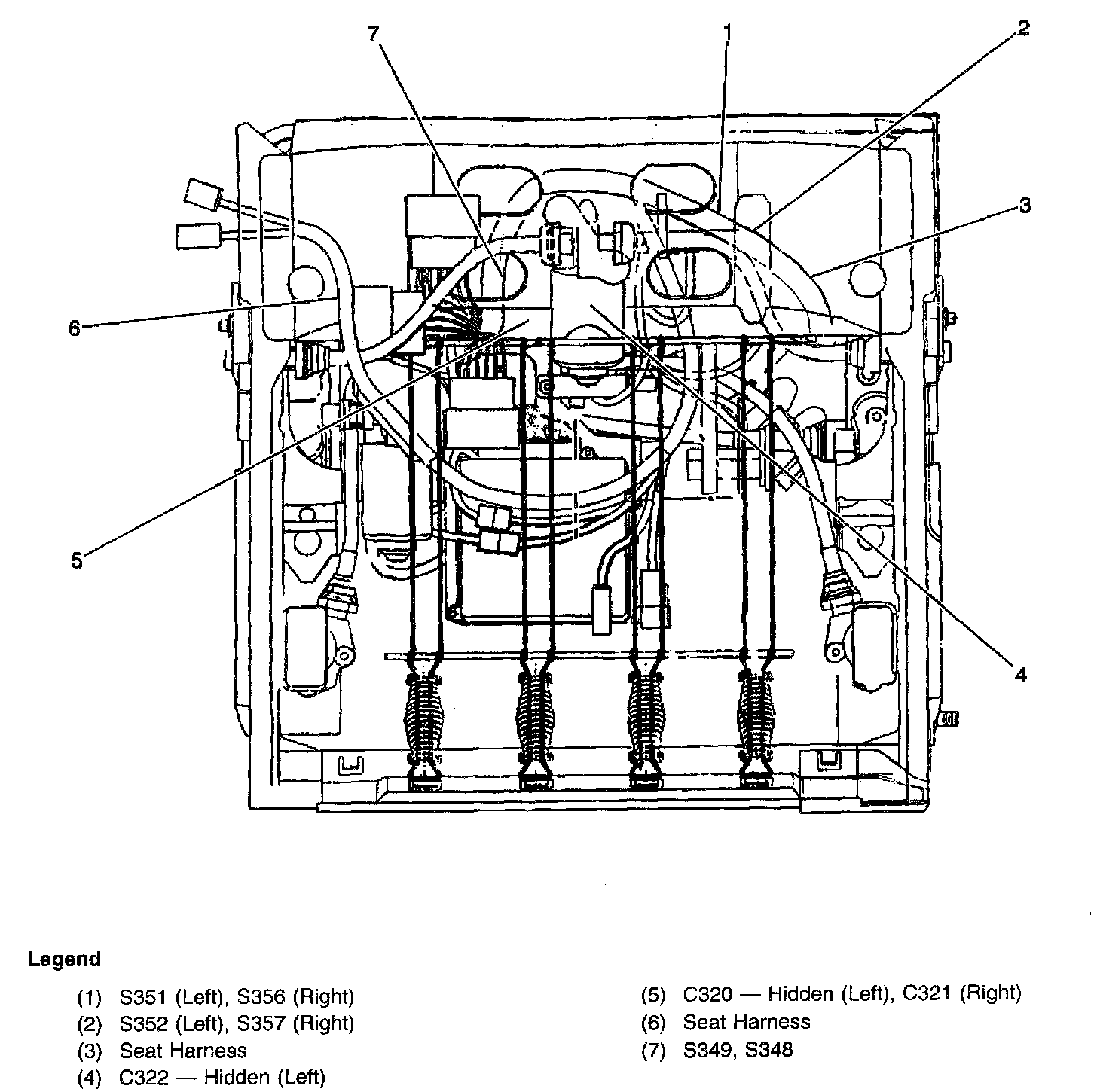

Seat Harness

Passenger Compartment, Right Front Seat:
