Impact Bar
Impact Bar

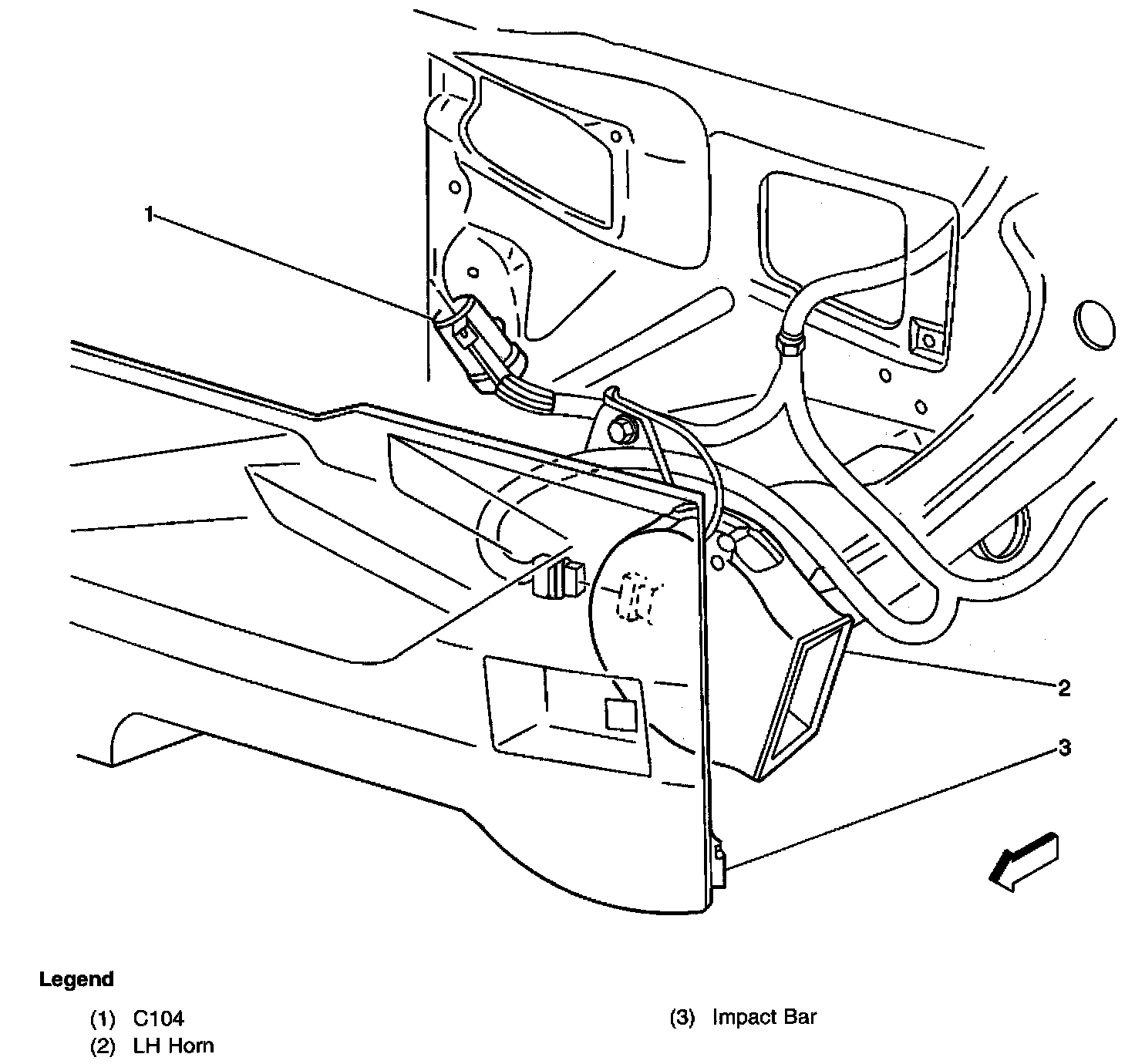

Left Front of the Vehicle, Behind the Front Fascia:

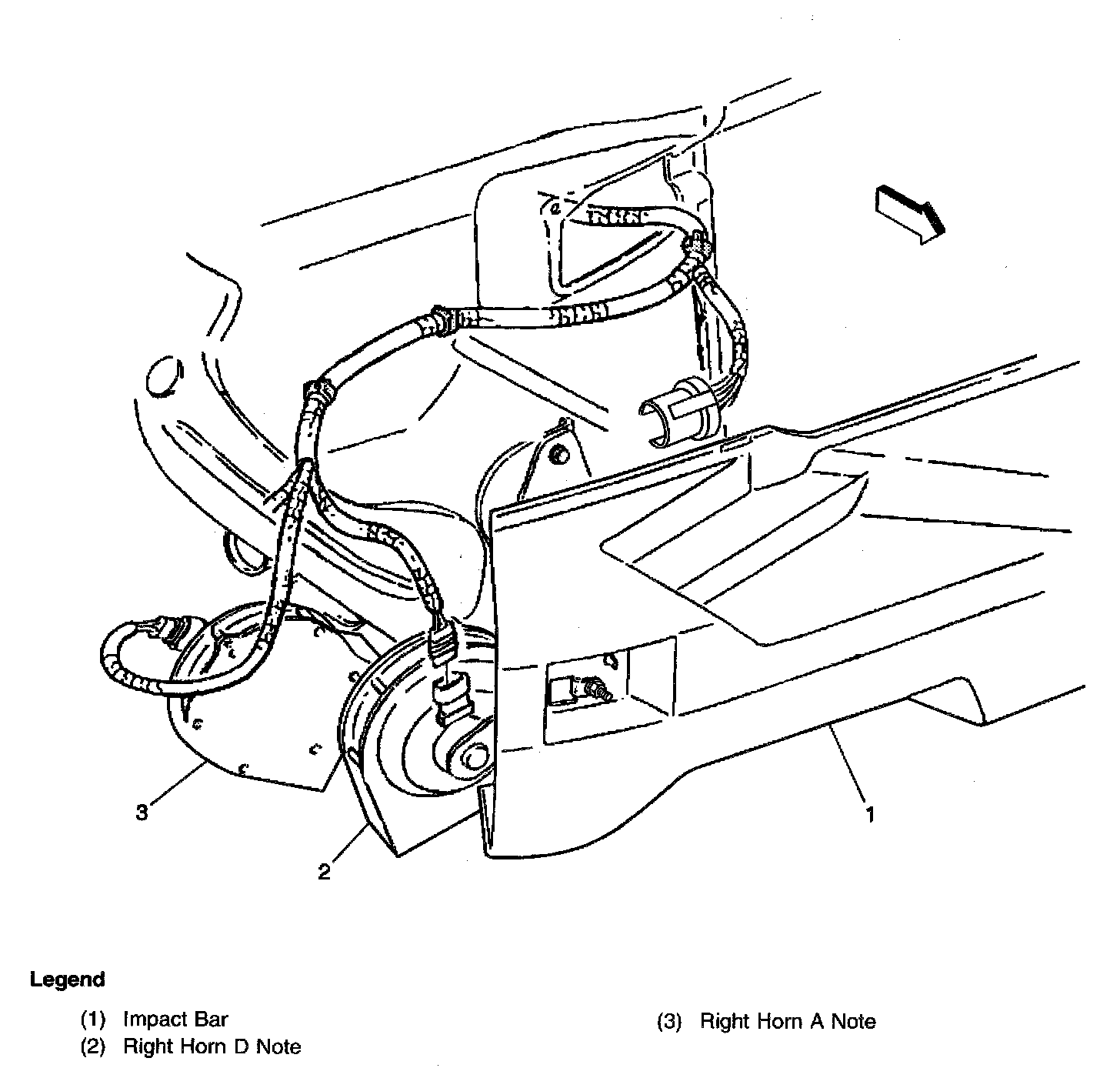

Right Front of the Vehicle, Behind the Front Fascia:
Right Front of the Vehicle, Behind the Front Fascia:
