DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Generator
Generator

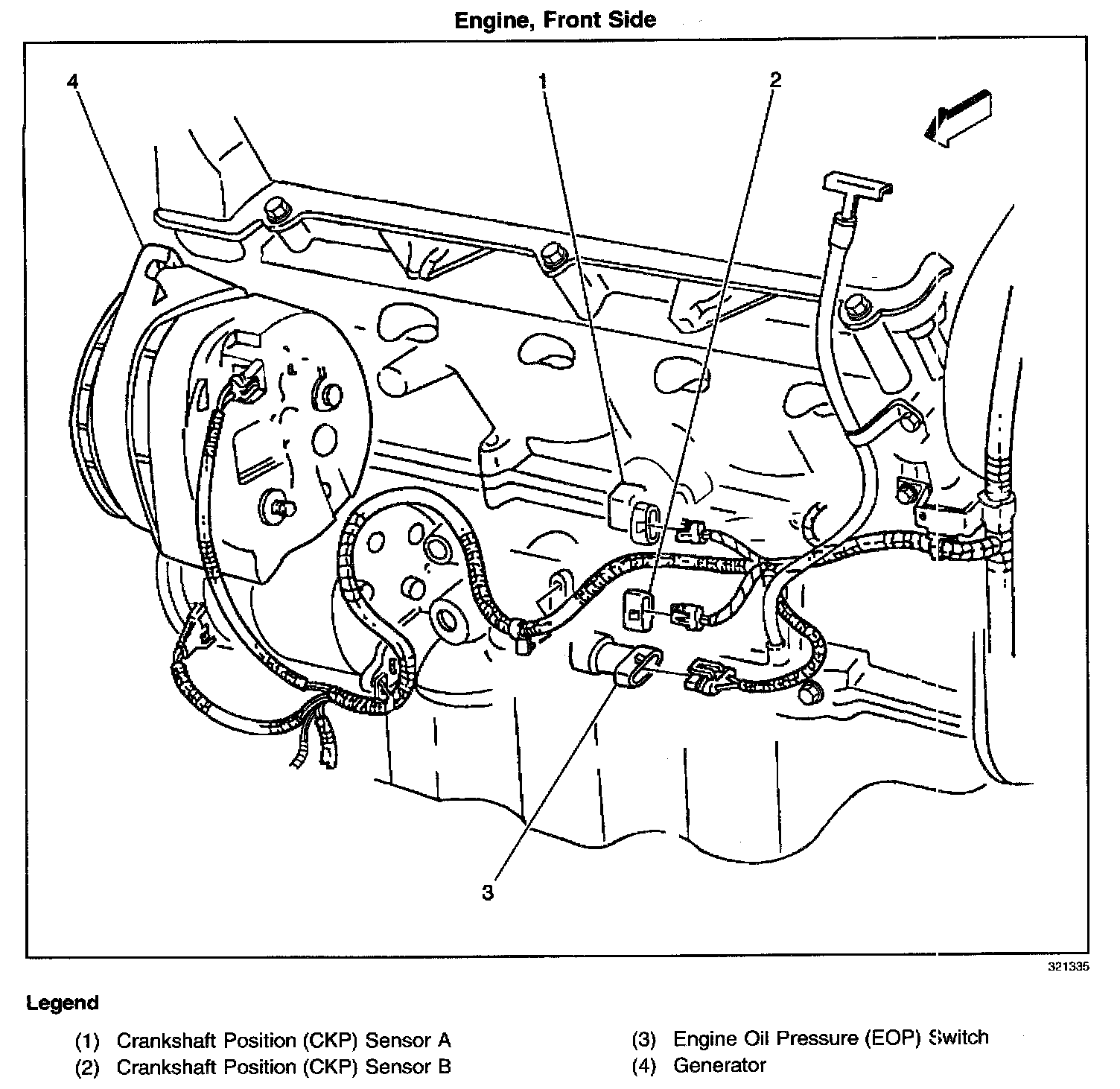

Locations View:
On the right front corner of the engine, near the battery
