Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuel Door Release Actuator

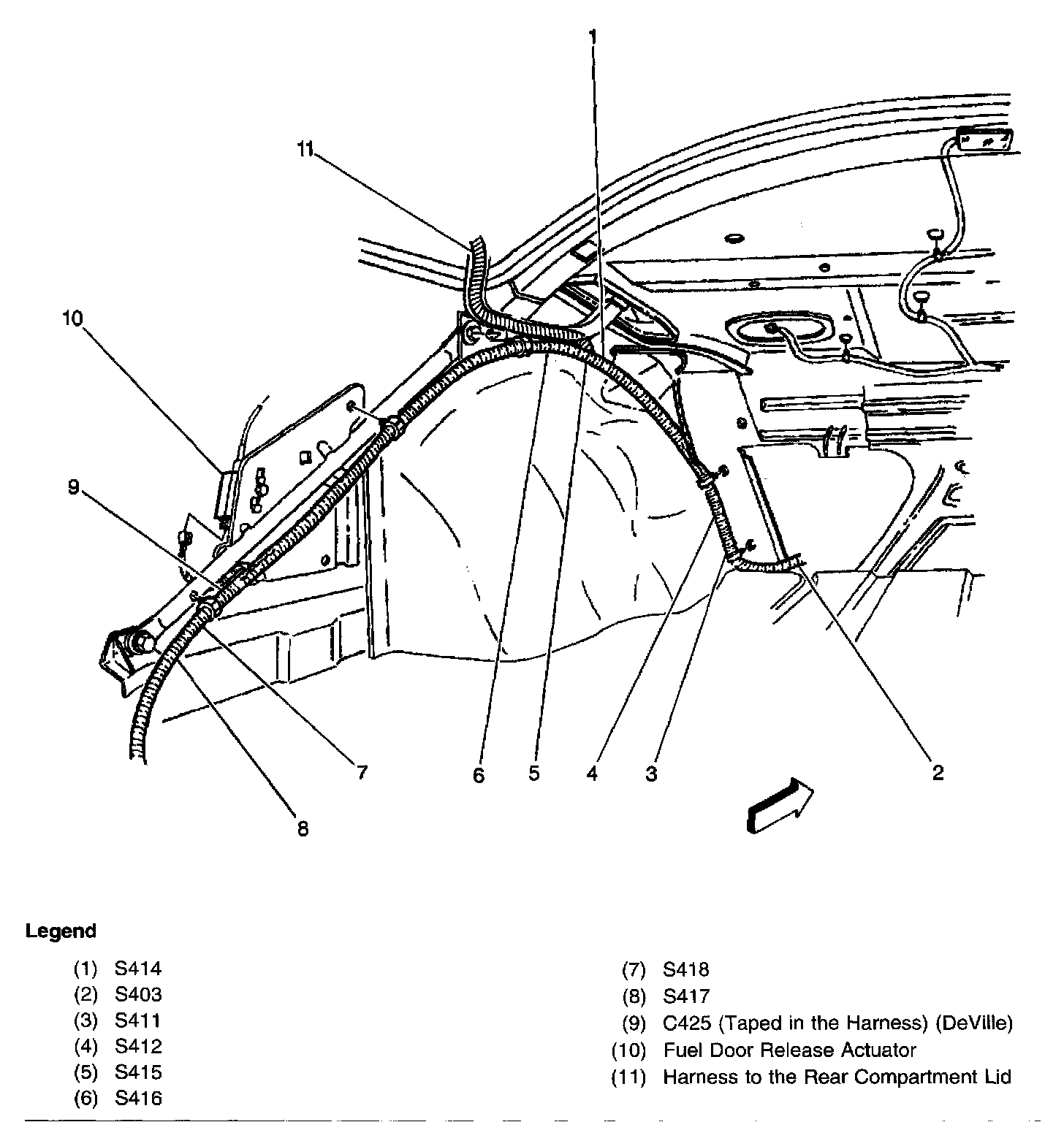

Fuel Door Release Actuator

Rear Compartment, in the Left Side:





In the left side of the rear compartment, near the wheelhouse
