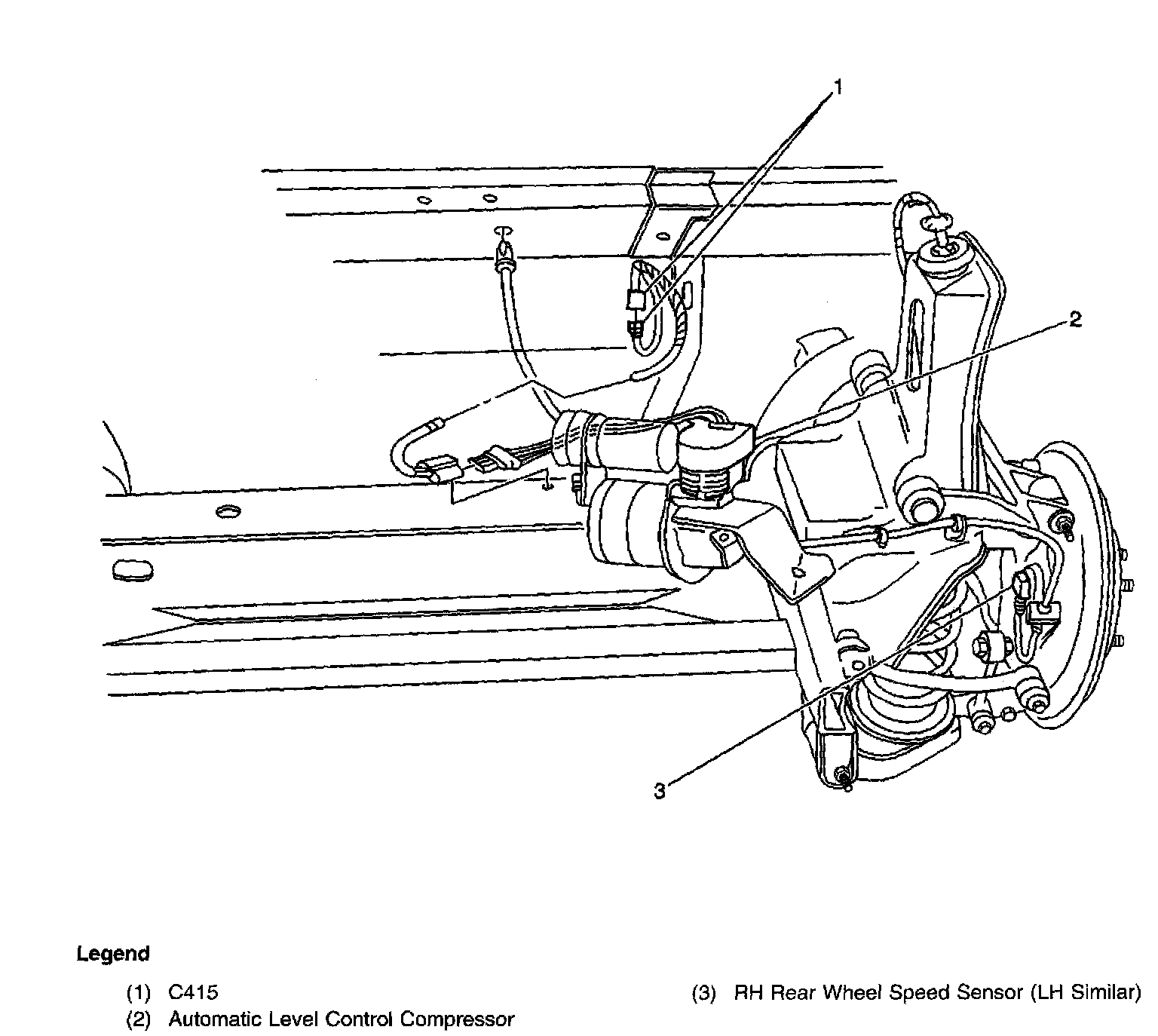

Automatic Level Control Compressor
Automatic Level Control Compressor
Below the Right Rear of the Vehicle:
Under the left rear of the vehicle, on the rear suspension support
