Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Switch Input/Outputs

Switch Input/Outputs

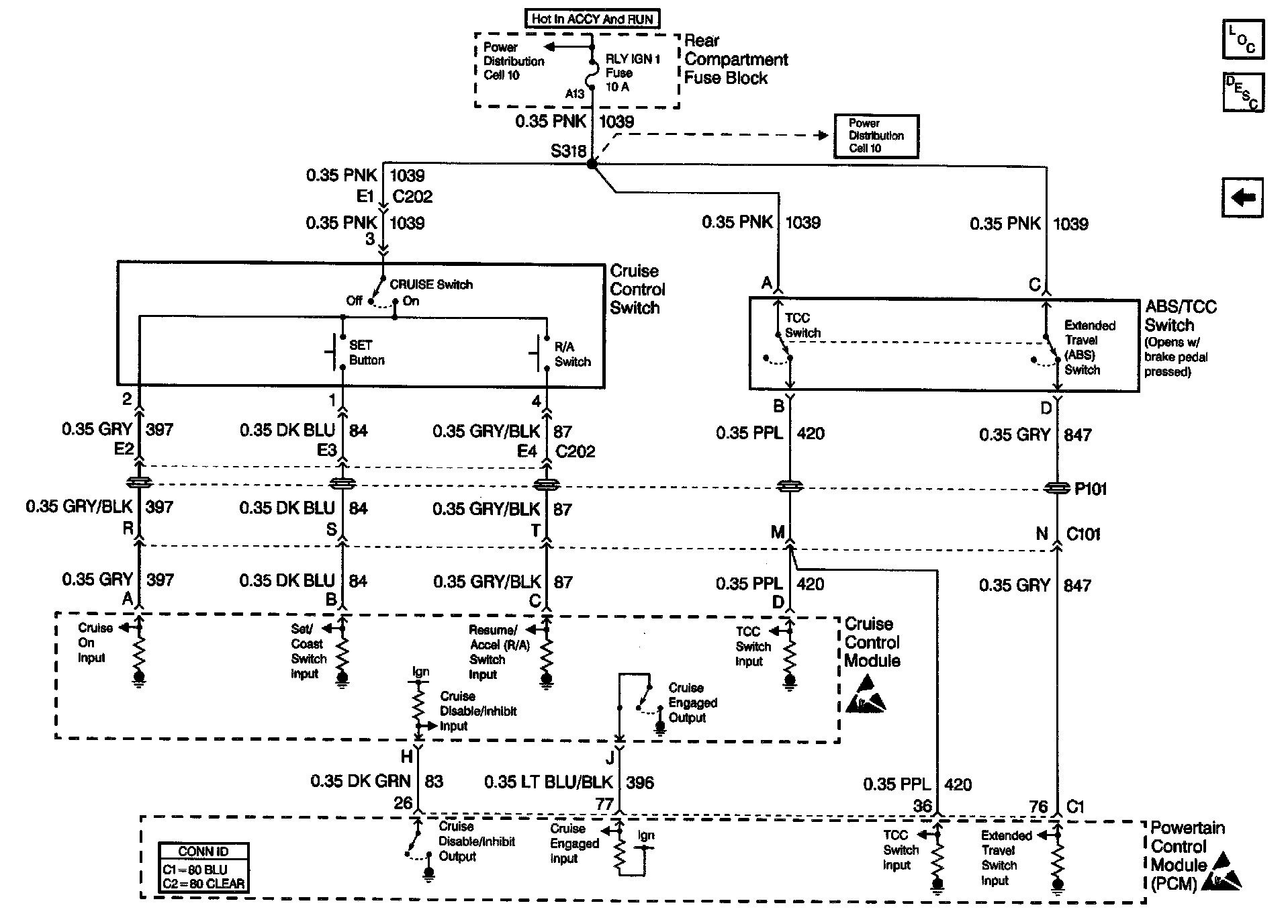

Cruise Control Schematics: Switch Input/Outputs:
