Weatherstrip Replacement - Front Door Opening

REMOVAL PROCEDURE




1. Open the front door.
2. Remove the windshield pillar garnish molding.
3. Remove the front carpet retainer.

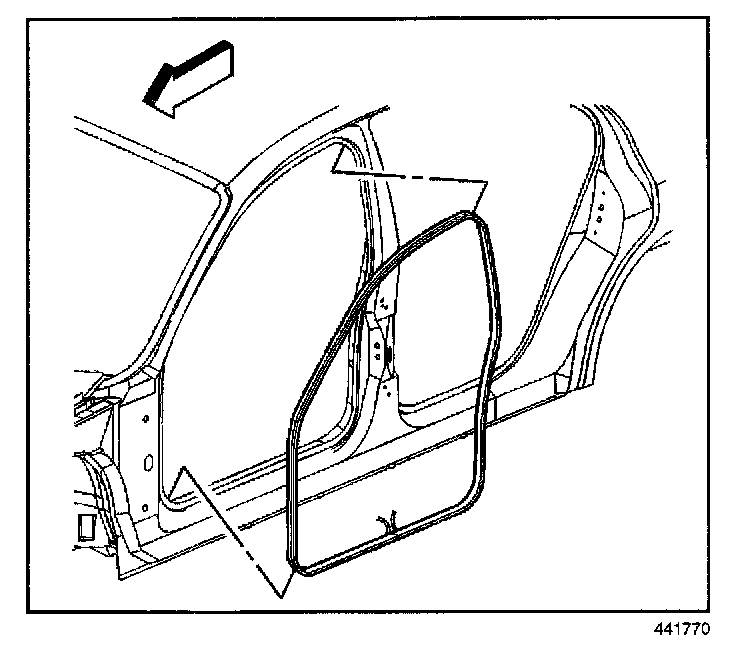

4. Pull the door opening weather-strip from the pinch weld flange.

INSTALLATION PROCEDURE

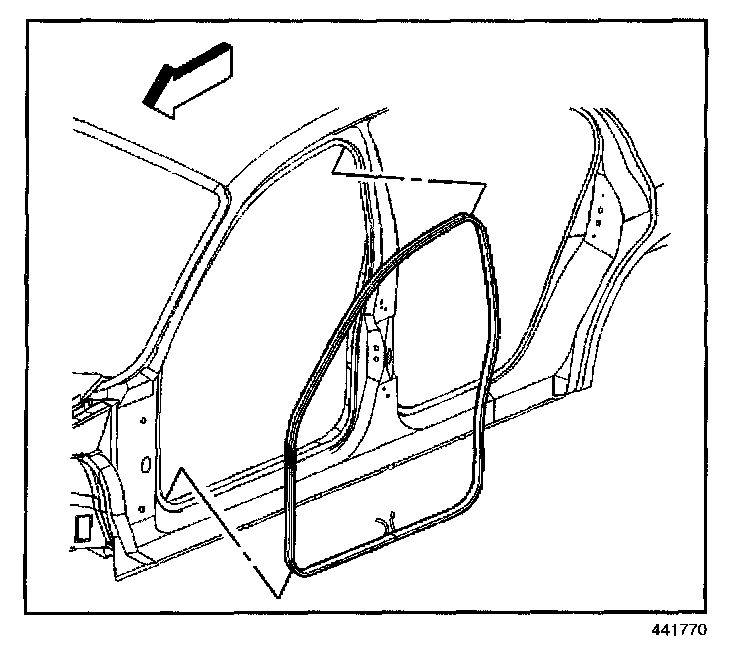

1. Position the alignment mark at the upper rear corner of the door opening.
2. Install the weather-strip to the flange. Firmly push the weather-strip onto the pinch weld flange until the weather-strip is fully seated.
3. Install the front carpet retainer.
4. Install the windshield pillar garnish molding.
5. Close the door.
