Seat Temperature Switch: Service and Repair

Lumbar/Heated Seat Switch Replacement - Power

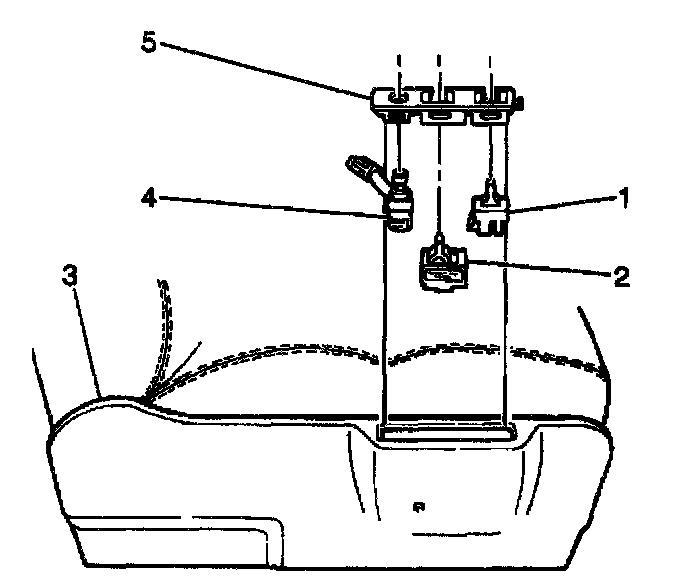

REMOVAL PROCEDURE
1. Remove the seat side trim panel (3).
2. Use a flat-bladed tool in order to carefully pry the rear edge of the switch escutcheon (5) up from the trim panel.
3. Release the tabs retaining the switches (2) to the switch escutcheon.

INSTALLATION PROCEDURE
1. In order to engage the tabs, press the switches (2) into the switch escutcheon.
2. Install the switch escutcheon (5) to the trim panel.
3. Install the trim panel (3).
