Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Heated Seat Back, C2

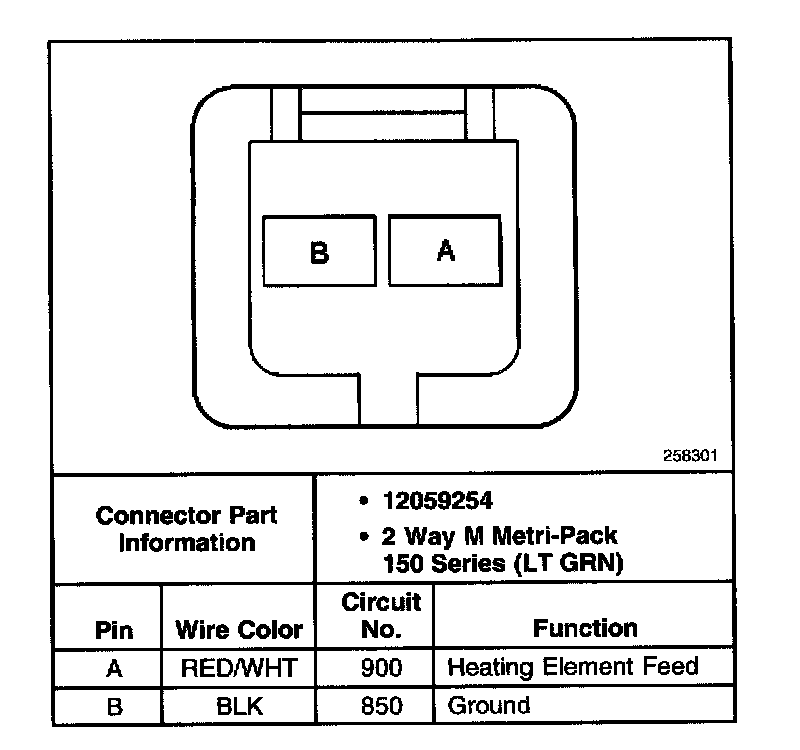

Heated Seat Back, C2

Heated Seat Back, C2:
