Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> Vertical Motor >> Seat Front Vertical Motor, RH

Seat Front Vertical Motor, RH

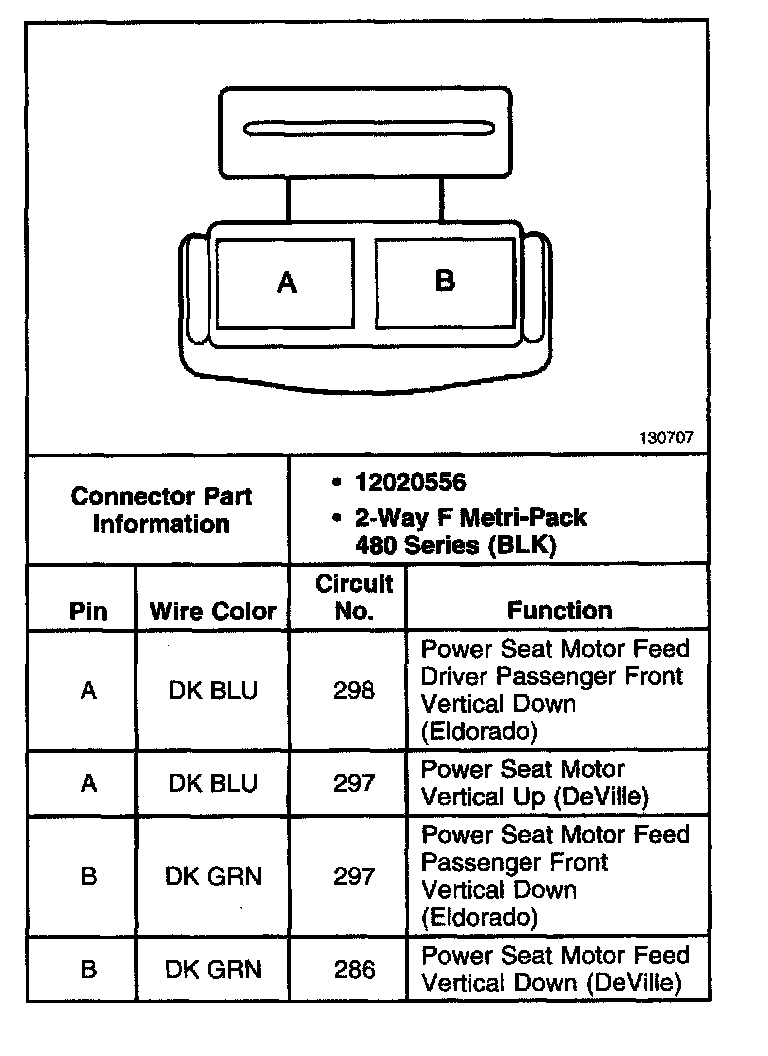

RH Seat Front Vertical Motor:
