Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> Seat Recline Motor >> Seat Recline Motor, LH

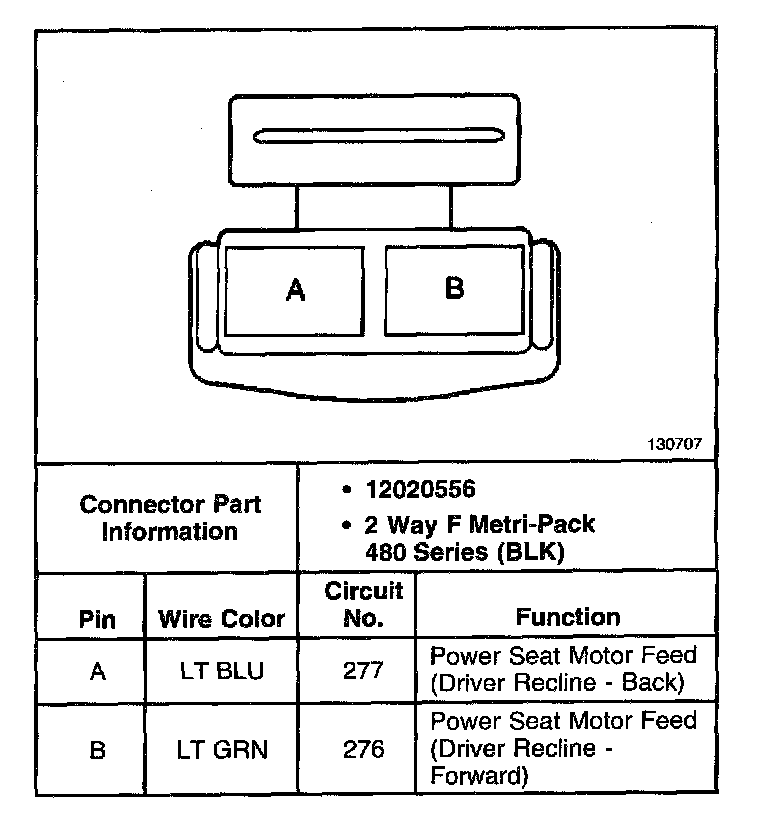

Seat Recline Motor, LH

LH Seat Recline Motor:
