Seat Vertical, Front/Rear & Seat Horizontal POSN SENS & Motors
Seat Vertical, Front/Rear & Seat Horizontal POSN SENS & Motors

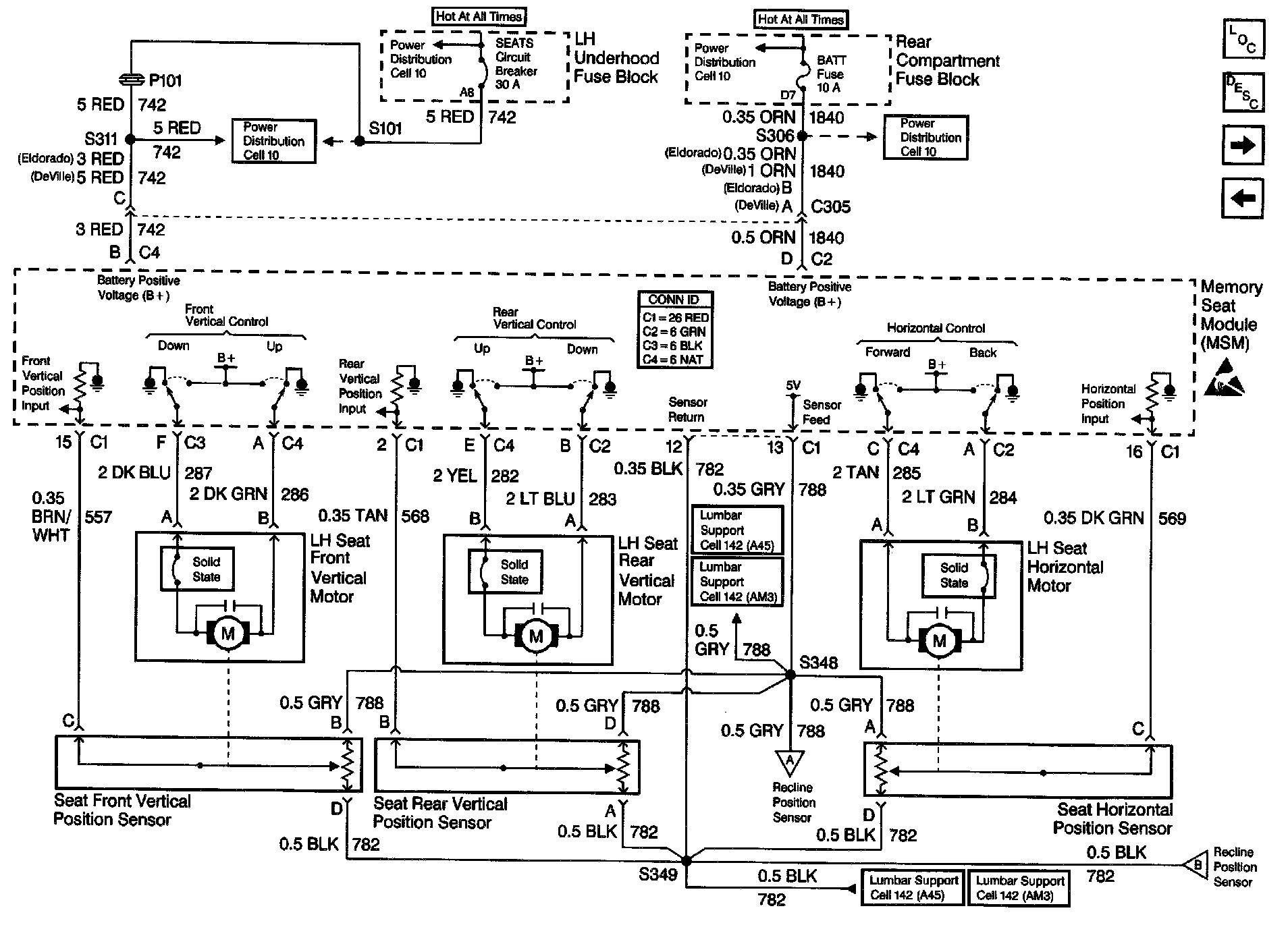

Memory Seats Schematics: Seat Front Vertical, Seat Rear Vertical, And Seat Horizontal Position Sensors And Motors:
