Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Lumbar Support >> Lumbar Support Schematics (AL2) >> LH Power Lumbar (AL2 Without A45)

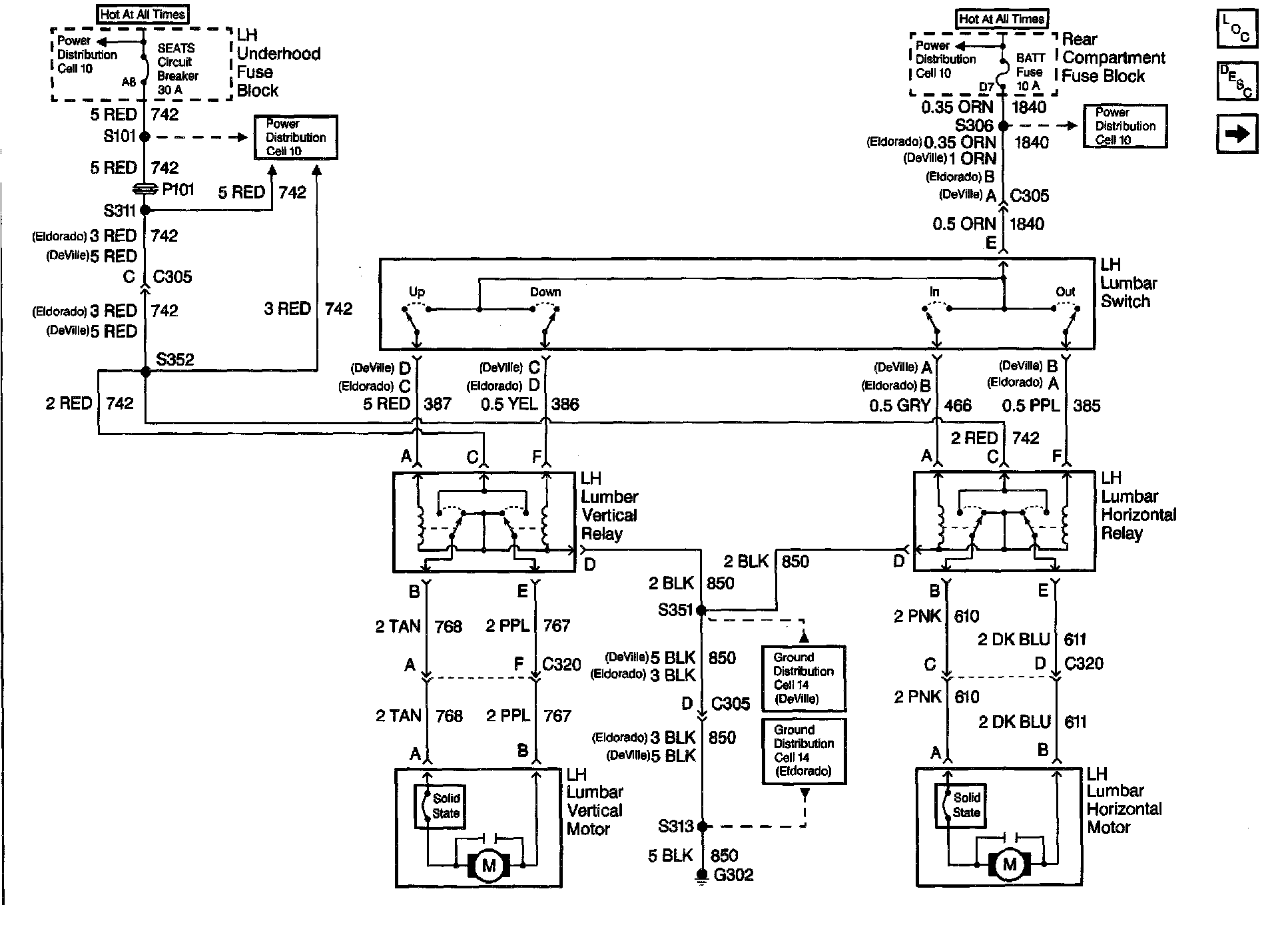

LH Power Lumbar (AL2 Without A45)

Lumbar Support Schematics (AL2): LH Power Lumbar (AL2 Without A45):
