Outside Power Mirror, Deville Without Memory Mirrors

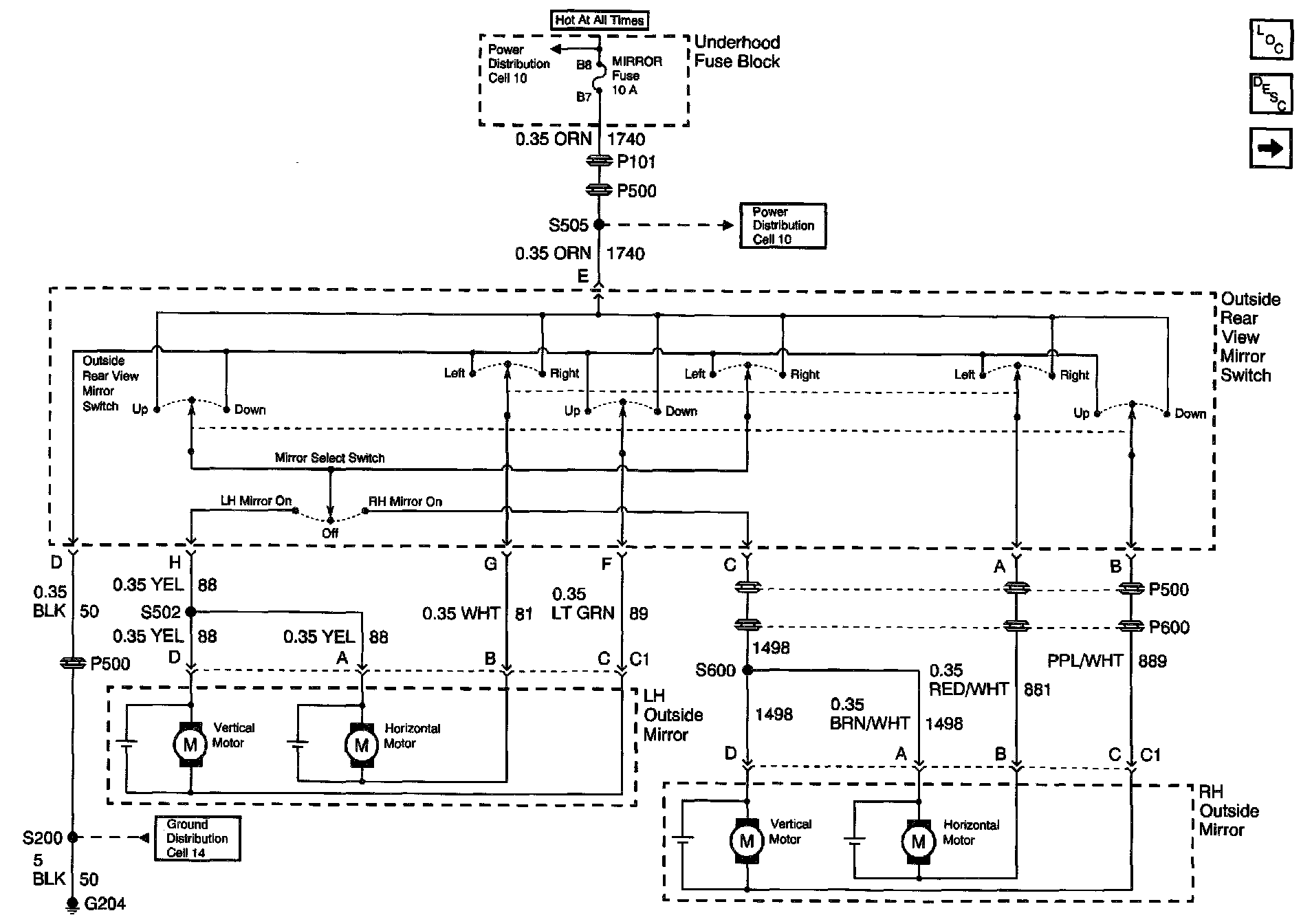

Outside Mirror Schematics: Outside Power Mirror, DeVille Without Memory Mirrors:
