Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Outside Power Mirror , Deville With Memory Mirrors

Outside Power Mirror , Deville With Memory Mirrors

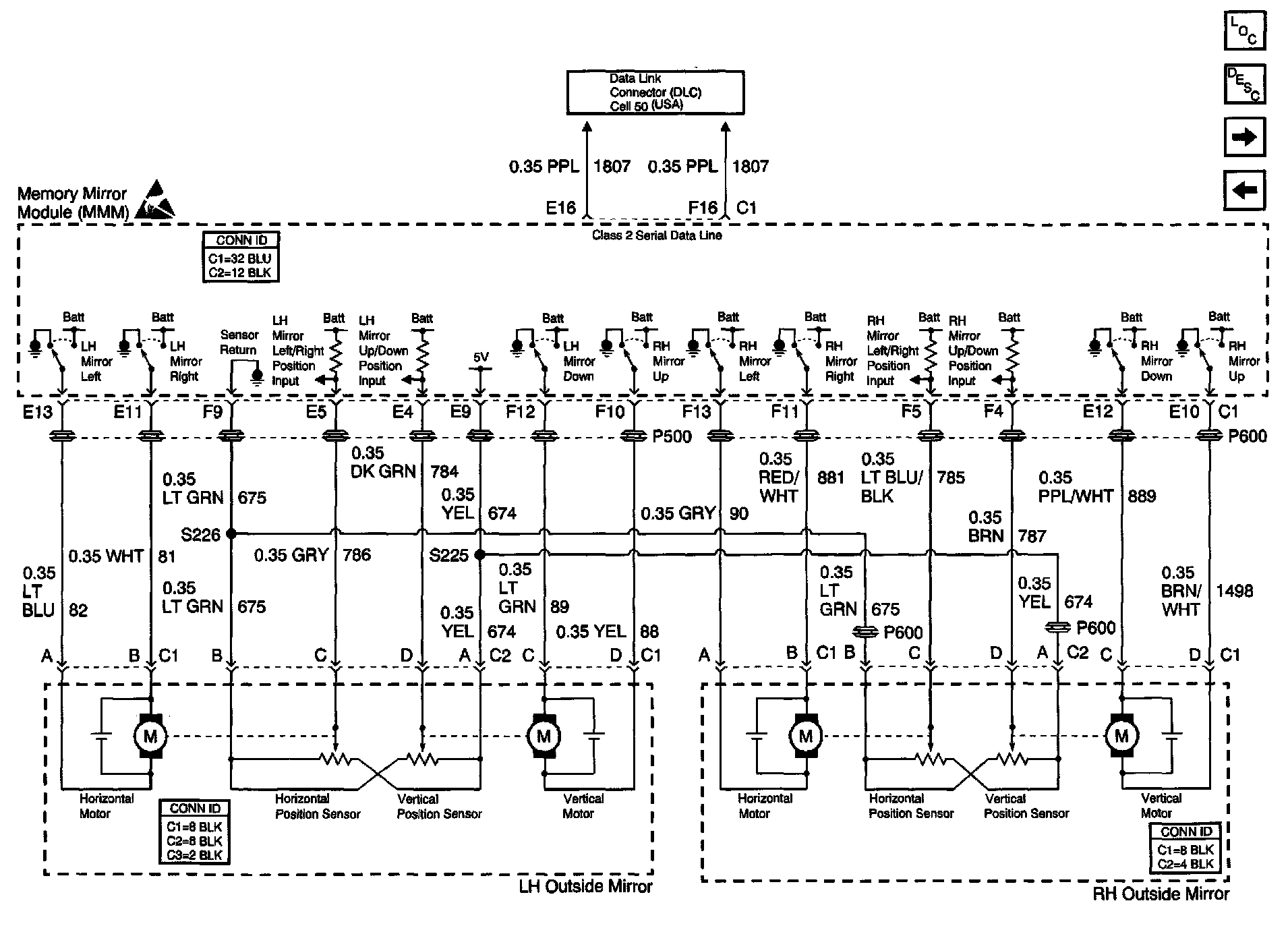

Outside Mirror Schematics: Outside Power Mirror , DeVille With Memory Mirrors:
