Door Lock Cylinder (Deville, Eldorado)

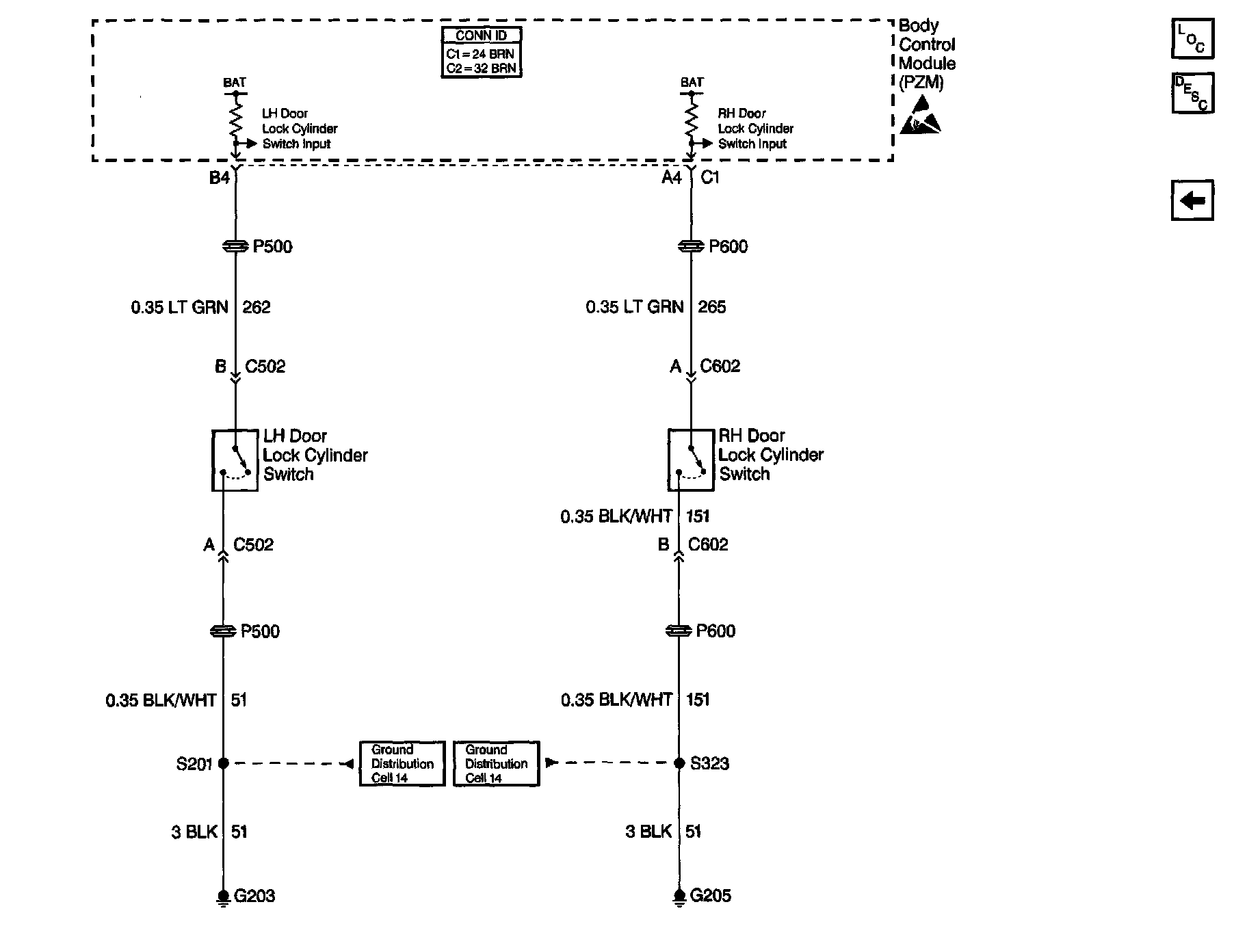

Door Lock Schematics: Door Lock Cylinder (DeVille, Eldorado):
