Trim Plate Replacement - Console Front

REMOVAL PROCEDURE
1. Block the wheels on the vehicle.
2. Place the shifter in NEUTRAL.
3. Remove the shifter handle retaining clip.
4. Remove the shifter handle.
5. Using a flat bladed tool carefully disengage the console trim plate retaining clips from the console.

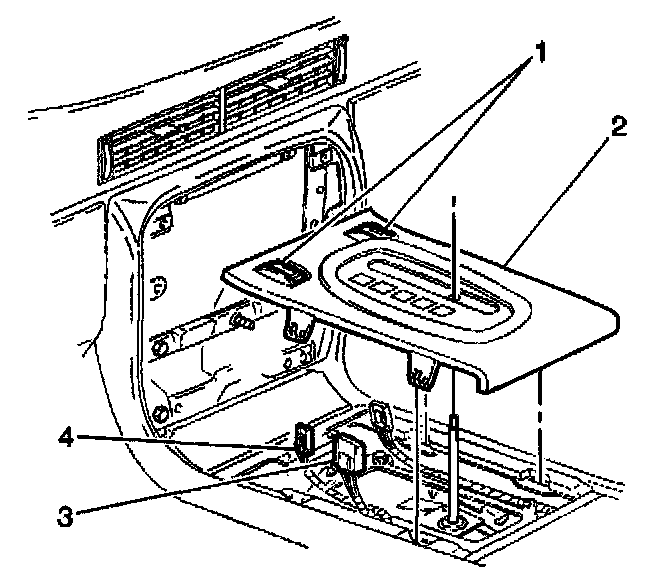

6. Partially remove the trim plate (2).

Disconnect the electrical connectors.
7. Remove the trim plate.

INSTALLATION PROCEDURE
1. Partially install the console trim plate (2). Connect the electrical connectors.
2. Align the trim plate retaining clips to the console.
3. Push downward in order to fasten the trim plate to the console.
4. Install the shifter handle.
5. Install the shifter handle retaining clip.
6. Place the shifter in PARK.
7. Remove the blocks from the wheels.
