Door Replacement - Console Compartment

REMOVAL PROCEDURE



1. Open the console compartment door.
2. Remove the 4 fasteners (1) retaining the console door to the door plate.
3. Remove the console door. Slide the door rearward.

INSTALLATION PROCEDURE

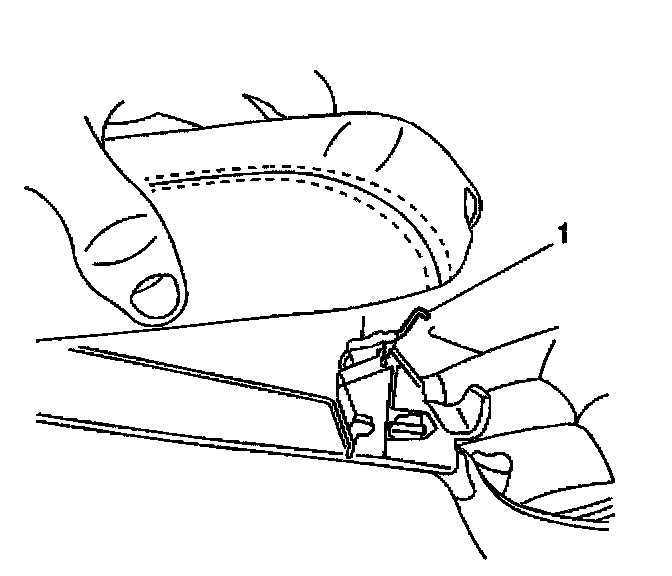

IMPORTANT: Console door latch spring (1) must be in the downward position.




1. Install the console door to the door plate.

Install the door to the rear of the door plate and slide forward.




2. Install the 4 console door fasteners (1).
3. Close the console door.
