Cupholder Replacement - Front Floor Console

REMOVAL PROCEDURE

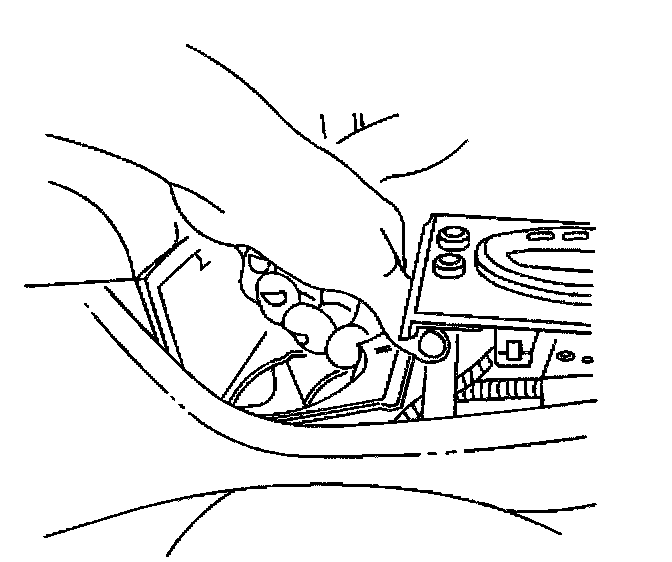

1. Disengage the retaining clips on the rear of the console center trim plate by pulling upward in order to allow access for cup holder removal.
2. Open the cupholder.
3. Remove the rubber liner from the bottom of the cupholder.

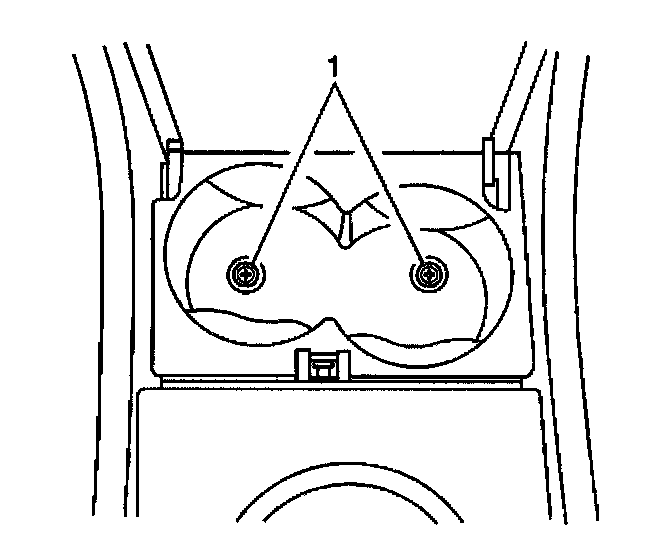

4. Remove the fasteners (1) from the bottom of the cupholder.




5. Remove the cupholder from the console.

INSTALLATION PROCEDURE



1. Install the cupholder into the console.




2. Install the fasteners (1).
3. Install the rubber liner to the bottom of the cupholder.
4. Close the cupholder.
5. Align the retaining clips on the rear of the console center trim plate to the console.

Push downward in order to fasten.
