Arm Rest: Service and Repair

REMOVAL PROCEDURE



1. Remove the console compartment door.

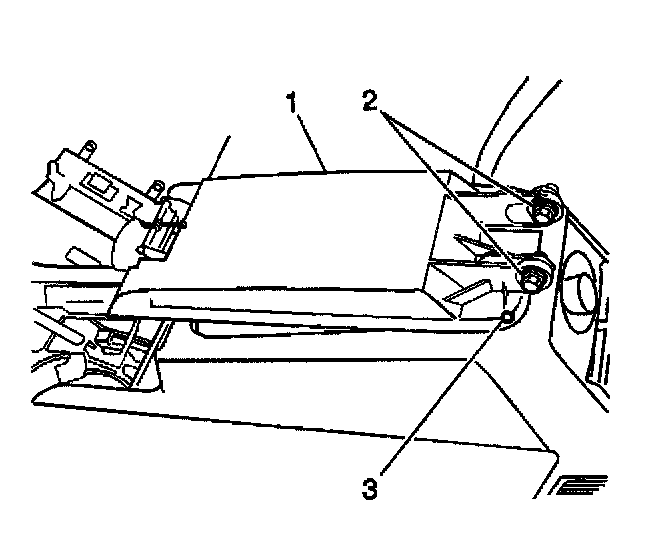

2. Remove the fasteners (2) retaining the door plate (1) to the console bracket.
3. Remove the door plate (1).
4. Remove the latch from the door plate.

INSTALLATION PROCEDURE



1. Install the latch to the door plate.
2. Install the door plate to the console bracket.

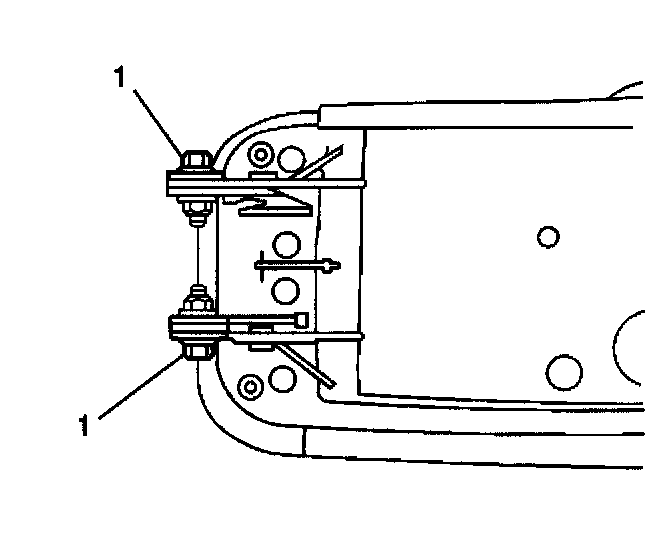

3. Install the door plate fasteners (1).
4. Install the console compartment door.
