(With UQ6/UW6)

REMOVAL PROCEDURE
1. Remove the rear seat to the rear window trim panel.

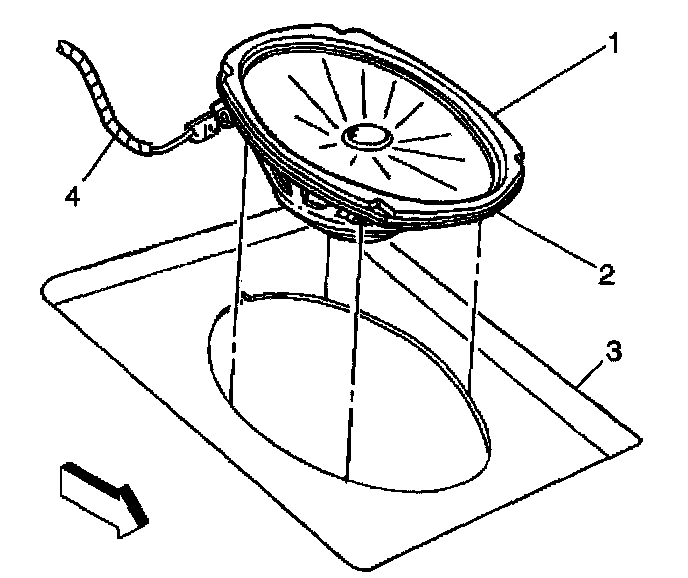

2. Pry the speaker (1) upward in order to release from the rear shelf panel.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.
2. Install the speaker (1).

Press downward on the outer speaker edge to retain the speaker to the rear shelf panel.
3. Install the rear shelf trim panel.
