(With UQ6)

REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Remove the 4 fasteners.

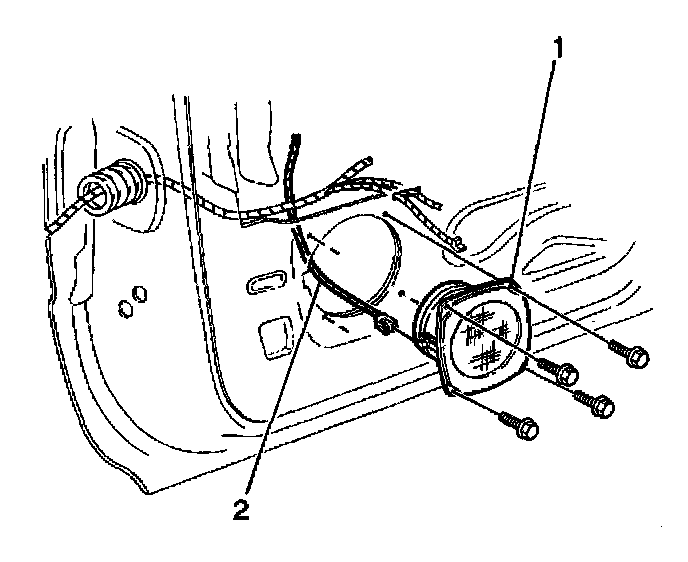

3. Partially remove the 13.3 cm (5.25 in) speaker (1).
4. Disconnect the electrical connector (2).
5. Remove the speaker.

INSTALLATION PROCEDURE

1. Partially install the speaker (1).

Connect the electrical connector (2). Align the speaker to the door.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the speaker fasteners.

Tighten
Tighten the fasteners to 1.7 N.m (15 lb in).

3. Install the door trim panel.
