Speaker Replacement - Front Upper




REMOVAL PROCEDURE
1. Remove the door trim panel.

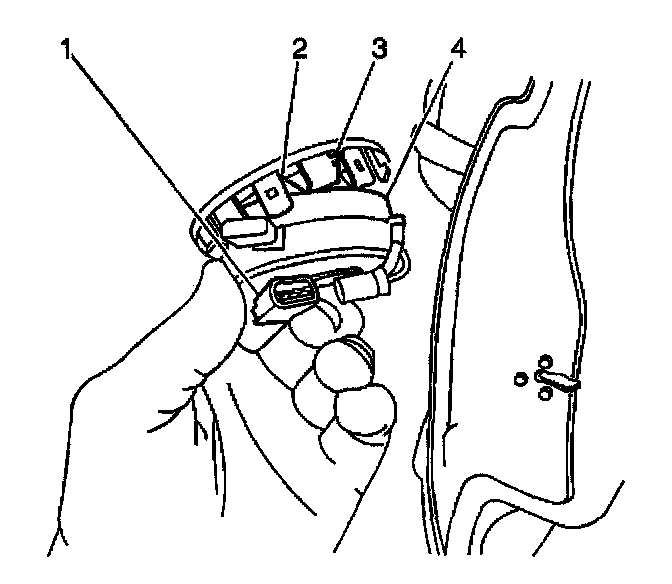

2. Disconnect the tweeter speaker electrical connector (1) from the door panel.
3. Disconnect the clips (3) retaining the tweeter speaker to the door trim panel.
4. Remove the speaker (4).
5. Release the retainers (2) fastening the speaker grille to the speaker.

Remove the speaker grille.

INSTALLATION PROCEDURE
1. Align the speaker grille retainers (2) to the speaker (4).

Push inward in order to fasten the grille to the speaker.
2. Align the speaker to the door trim panel. Push inward in order to fasten the speaker.
3. Connect the electrical connector (1).
4. Install the door trim panel.
