Front Door

REMOVAL PROCEDURE
1. Remove the door trim panel.

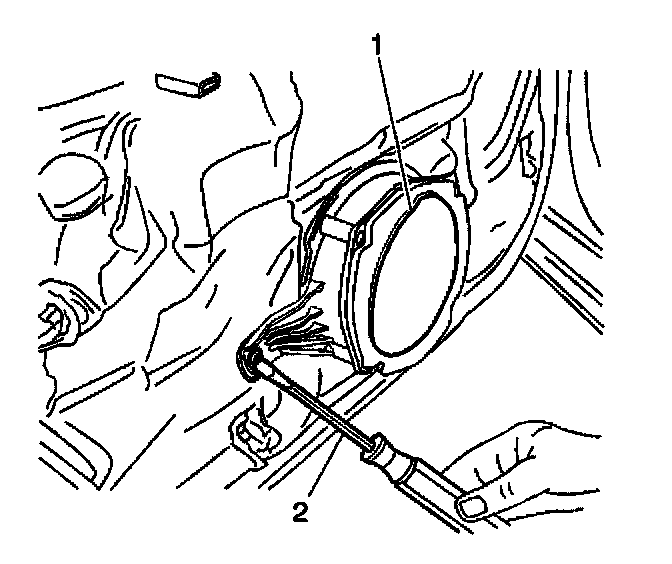

2. Remove the fasteners in order to release the 15 cm (5.25 in) speaker (1).
3. Partially remove the speaker.
4. Disconnect the electrical connector.
5. Remove the speaker.

INSTALLATION PROCEDURE
1. Partially install the speaker.
2. Connect the electrical connector.
3. Align the speaker to the door.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the fasteners in order to attach the 15 cm (5.25 in) speaker (1).

Tighten
Tighten the fasteners to 2 N.m (18 lb in)

5. Install the door trim panel.
