(With UQ6)

REMOVAL PROCEDURE

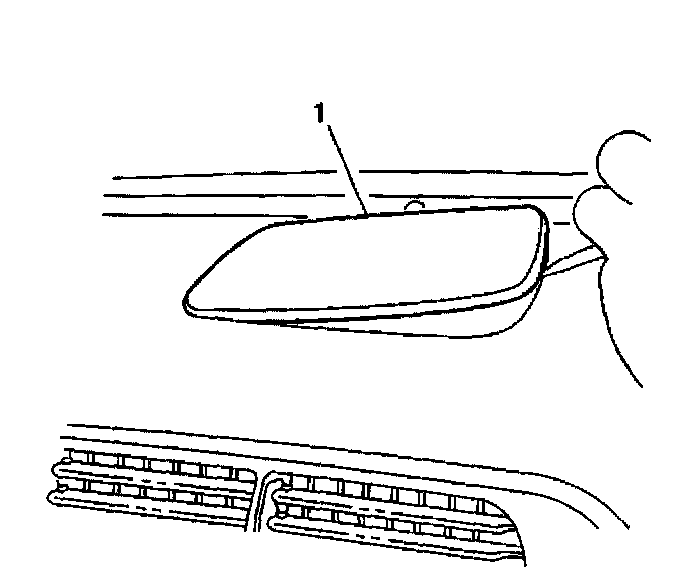

1. Remove the speaker grille (1) from the center of the instrument panel.

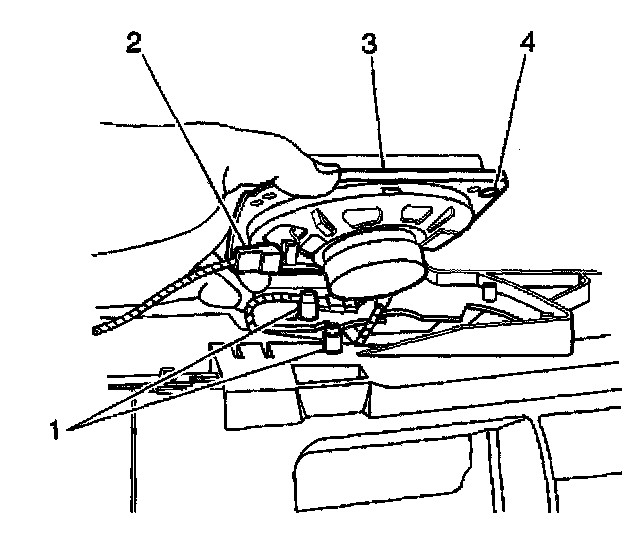

2. Remove the 4 fasteners in order to release the speaker (3).
3. Lift out the speaker (3).
4. Disconnect the electrical connections (2) from the speaker (3).

INSTALLATION PROCEDURE



1. Connect the electrical connections (2) to the speaker (3).

Align the speaker to the IP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the 4 fasteners in order to attach the speaker (3).

Tighten
Tighten the fasteners to 2 N.m (18 lb in).

3. Install the speaker grille.
