Speaker Replacement

REMOVAL PROCEDURE
1. Remove the door trim panel.

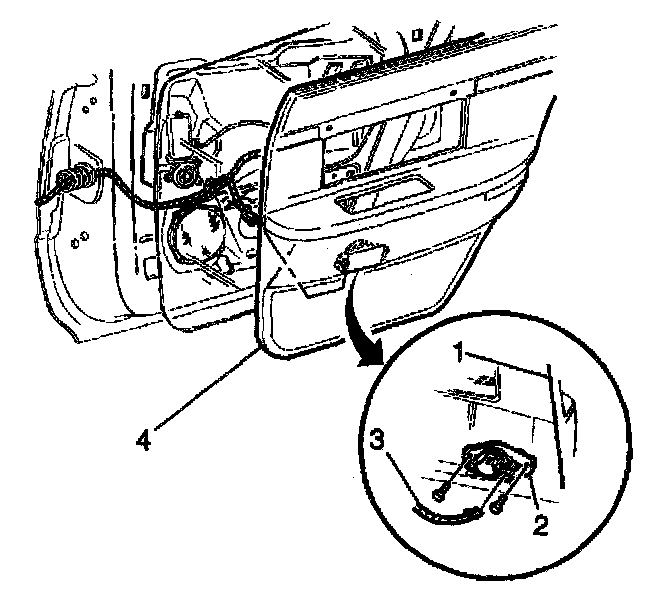

2. Disconnect the tweeter speaker electrical connector (3) from the door trim (1).
3. Remove the fasteners retaining the speaker to the door trim panel.
4. Remove the speaker.

INSTALLATION PROCEDURE
1. Partially install the speaker to the door trim panel. Install the fasteners.
2. Connect the tweeter speaker electrical connector (3) to the door trim (1).
3. Install the door trim panel.
