Remote CD Changer Replacement

REMOVAL PROCEDURE

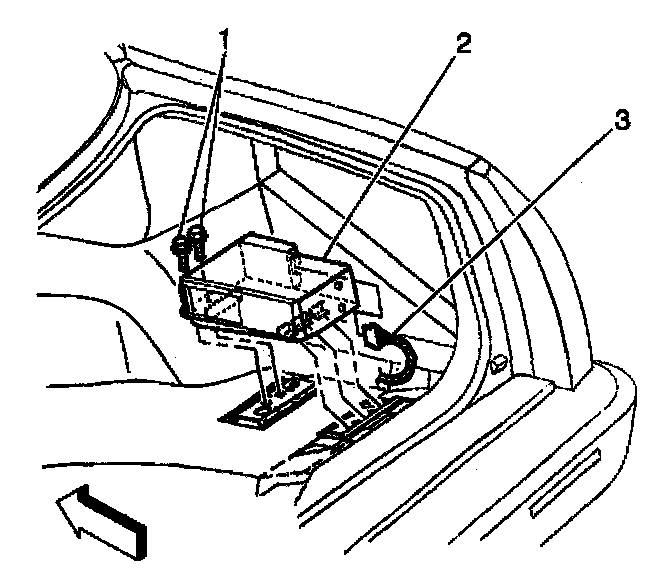

1. Disconnect the electrical connector (3) from the changer (2).
2. Remove the 2 bolts (1) from the floor bracket at the front of the changer.




3. Slide the changer (4) forward in order to remove the changer.
4. Remove the changer from the mounting bracket it necessary.

INSTALLATION PROCEDURE



1. Install the changer to the mounting bracket if necessary.
2. Slide the tabs on the bracket (3) into the slots in the floor.

NOTE: Refer to Fastener Notice in Cautions and Notices.




3. Install the 2 bolts (1) to the front of the bracket into the floor.

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

4. Connect the electrical connector (3).
