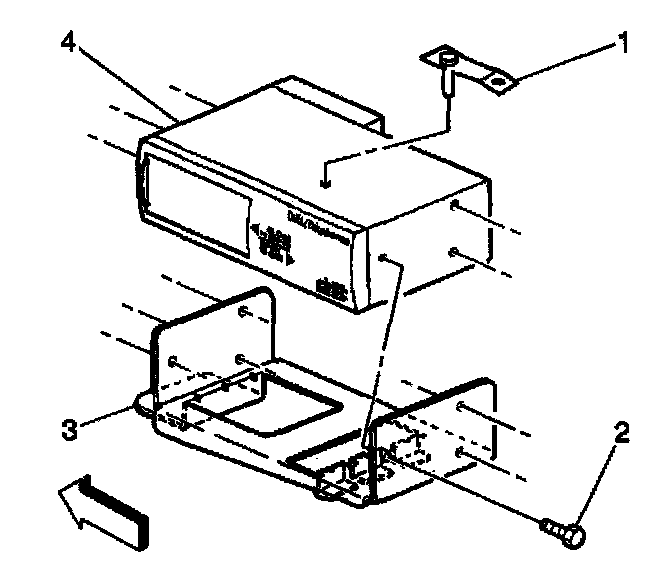

CD Changer From Bracket Removal




REMOVAL PROCEDURE
1. Remove the CD changer from the floor mount.
2. Remove the 6 fasteners (2) from the CD changer (4).
3. Remove the bracket (3).

INSTALLATION PROCEDURE
1. Install the bracket (3).
2. Install the 6 fasteners (2).
3. Install the CD changer to the floor.
