Keyless Entry Receiver: Service and Repair

REMOVAL PROCEDURE
1. Remove the rear seat back.
2. Disconnect the electrical connector.

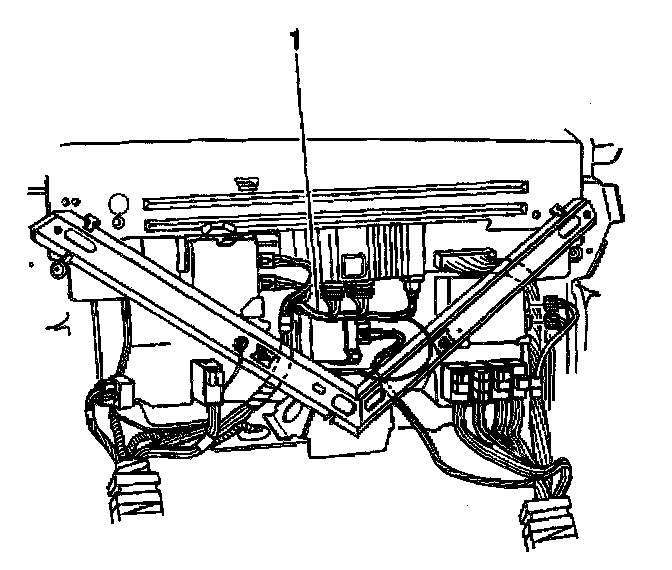

3. Press on the locking tabs in order to remove the Remote Function Actuator (RFA) module (1) from the electronics bay board.

INSTALLATION PROCEDURE
1. Install the RFA module (1) onto the electronics bay board.
2. Connect the electrical connector.
3. Install the rear seat back.
4. Reprogram the transmitters. Testing and Inspection
